Clamp holder
GN 477-B8-MT mattAL - Aluminium
Item-no.: 1203603Supplier number: 477-B8-MTEAN: 4045525640467
Quantity:
1 STKPackable
Item available in 12 variants:
Description

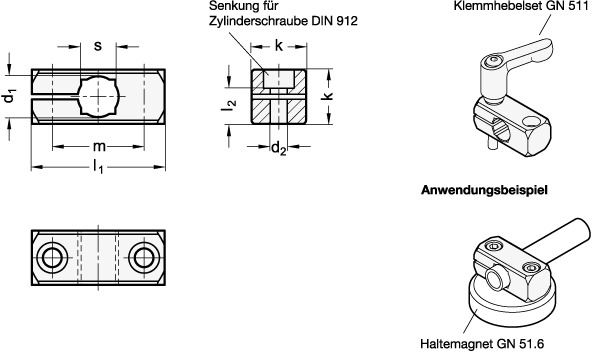

Mounting clampsGN 477 have no thread. Mounting or clamping is made via two threads on the attachment side. The bore distance m corresponds to base plate mounting clamps GN 473, base plate swivel mounting clamps GN 485 and flanged mounting bolts GN 480 as well as retaining magnets GN 51.6.
Attributes
Borehole d1
B 8
Clamping lever sets for d2
511-M4-20
L1
31.5
L2
10
Material
AL - Aluminium
RoHS
Ja
Surface
MT - matt, vibratory ground
Weight
0.011 kg
k
14
m
22
