1195627 #1
Ganter

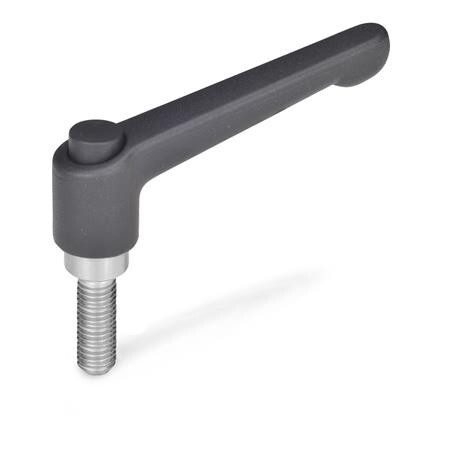

Clamping lever

GN 303.1-63-M8-25-SW-S Stainless steel, black handle & knob
Item-no.: 1195627Supplier number: 303.1-63-M8-25-SW-SEAN: 4045525802001
Quantity: ​​ 1 PiecePackable​
Item available in 276 variants:
Immediately Available
Description
Adjustable hand levers GN 303.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be dis-engaged. The releasing button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.
Attributes
Adjustable
True
Colour disengagement button
S - black, RAL 9005
Colour handle body
SW - black, RAL 9005, textured matt
Connection thread d1
M 8
Handle body material
ZD - Zinc die casting
Handle length l1
63
RoHS
Ja
Thread length l2
25
Weight
0.089 kg
d3
13.5
d4
17.5
h1
32.5
h2
6.5
h3
45
