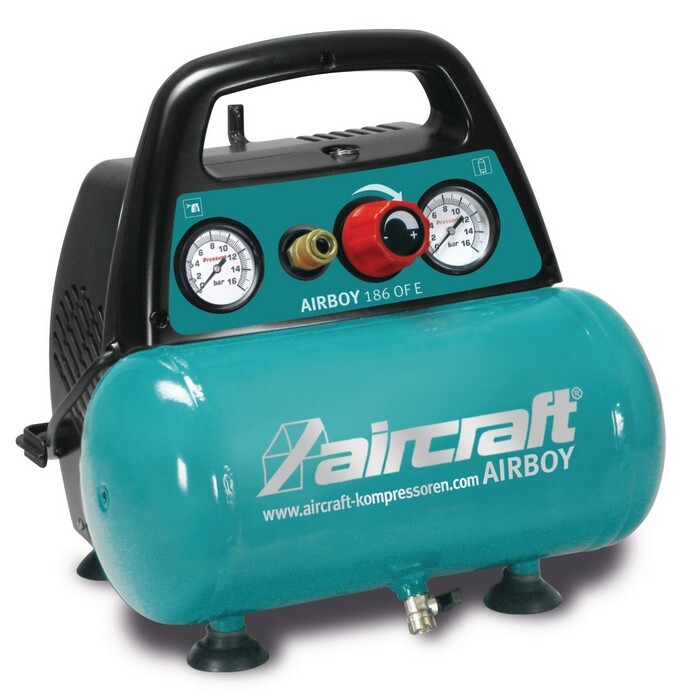

Piston compressor
1.1 kW, 230 V, 90 l/min, 8 bar Aircraft Airboy 186 OF EItem-no.: 1595365Supplier number: 2001230EAN: 9006248018419
Quantity:
1 STKPackable
Description
Tragbarer Kompressor · Universell einsetzbar · Ölfreier Kolbenkompressor, somit kein Ölwechsel notwendig und kein Öl im Kondensat · Vollautomatischer Ein-Ausschaltbetrieb · Elektromotor mit Motorschutzschalter ausgestattet · Je ein Manometer für Anzeige des Behälter- und Arbeitsdrucks · Druckluftbehälter pulverbeschichtet.
Attributes
Approximate suction capacity
180 l/min
Automatic pressure switch
✔
Compaction system
WDS
Compressed air extraction
A one-hand quick-release coupling
Compressed air tank
Powder-coated
Compressor speed
3400 min¯¹
Container base
Four suction cups
Container content
6 l
Explanation filling performance
at 6 bar working pressure
Explanation sound power level
Sound power level in accordance with DIN EN ISO 3744 (Directive 2000/14/EC)
Filling capacity approx.
90 l/min
Height (product) approx.
370 mm
Length (product) approx.
315 mm
Mains frequency
50 Hz
Material compressed air line
Aluminium
Maximum pressure
8 bar
Number of compression stages
1
Number of cylinders
1
Output power
1,1 kW
Power supply voltage
230 V
Pressure control
Pressure reducer
Sound power level Lw
97 dB(A)
Width/depth (product) approx.
355 mm
