Bosch

GCL 2-16 combi laser

RM1+BM3 swivel bracket in box Bosch 0.601.066.E02
Item-no.: 1438808Supplier number: 0601066E02EAN: 3165140837224

Quantity: ​​ 1 STKPackable
Short-term Sourcing

Description

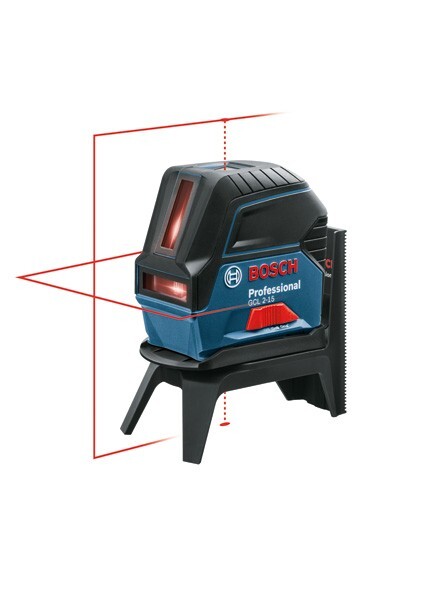

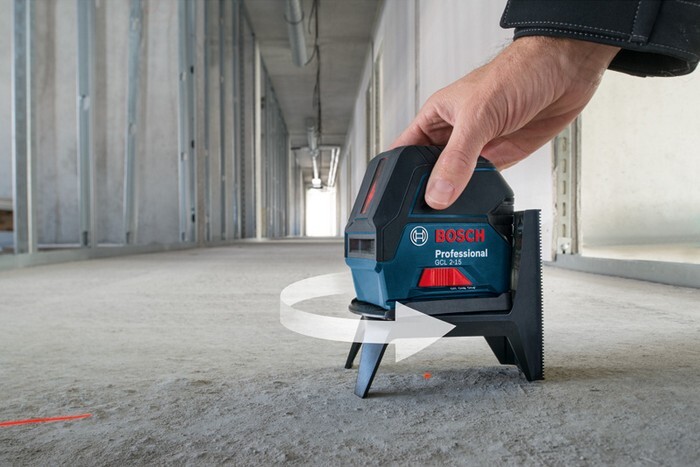

Combi Laser GCL 2-15, The combi laser GCL 2-15 Professional convinces through its compact design and is especially suitable for short-distance levelling applications. By projecting both horizontal and vertical laser lines and two centred plumb points, this combi laser supports completing levelling tasks quickly. Its plumb points make precise transfer applications easy and convenient. Aligning the laser lines around the plumb points is simple thanks to its rotating mount RM 1 Professional. The GCL 2-15 Professional is suitable for various applications such as mounting shelves and windows, installing drainage pipes, and laying floors. It also offers point transfers for light mountings. The GCL 2-15 Professional provides a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust thanks to IP54 dust and splash water protection. When switching off the tool, the pendulum’s lock-mechanism allows for safe transportation. Carrying case, Rotating mount RM 1 Professional (0 601 092 600), Ceiling clamp, Laser target plate, 3 x 1.5 V LR6 battery (AA)
Attributes
Colour laser line
red
Dust and splash protection
IP 54
Laser class
2
Laser diode
630 - 650 nm, < 1mW
Levelling accuracy
± 0.3 mm/m* (* plus application-dependent deviation)
Levelling time
4 s
Operating temperature
-10 - 50 °C
Operating time, max.
8 h in cross-line operation
Power supply
3 x 1.5 V LR6 (AA)
Projection
2 lines / 2 points
Self-levelling range
± 4°
Soldering point accuracy
± 0.7 mm/m* (* plus application-dependent deviation)
Storage temperature
-20 - 70 °C
Tripod thread
1/4", 5/8"
Weight, approx.
0.49 kg
Work area
up to 15 m
Work area laser dot, max.
10 m (top)
Work area, sign
up to
Work area, value
15 m
