Ganter

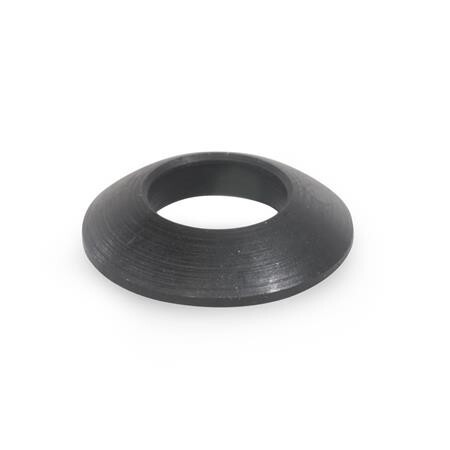

Spherical disc Case-hardened steel

DIN 6319-10,5-C for M 10
Item-no.: 1130257Supplier number: DIN 6319-10,5-CEAN: 4045525324091

PU (Packaging): 25 STKQuantity: ​​ 1 STKPackable
Item available in 33 variants:
Immediately Available

Description
Spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces. The dished washers type G with enlarged outside diameter are mainly used on elongated holes. When utilizing hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.
Attributes
Borehole diameter Form C d1
10.5
Form
C - Spherical disc
R
15
RoHS
Ja
Weight
0.005 kg
d2
21
h1
0.8
h2
4
h5
6.5
