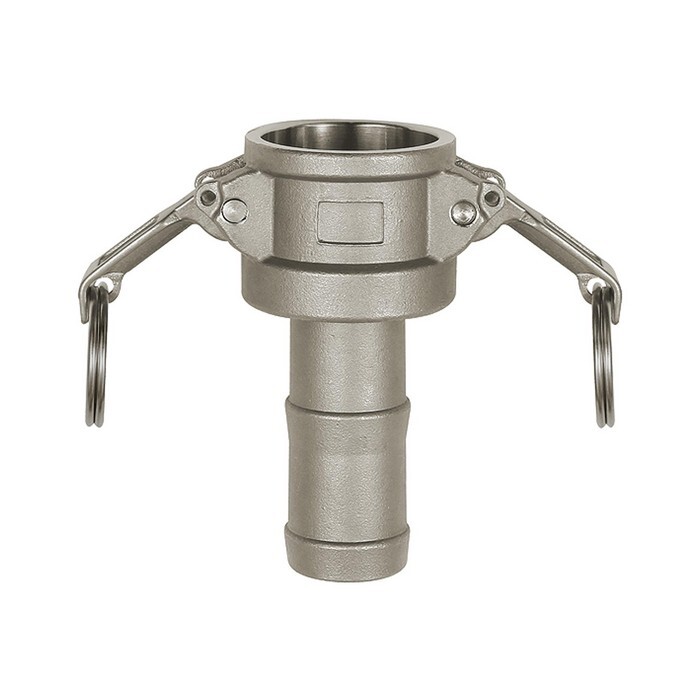

Coupling sleeve type C
DN40 spigot 40 mm Kamlok, stainless steelItem-no.: 1117592EAN: 4047322404341
Quantity:
1 STKPackable
Description
Kamlok quick-connect socket, Hose supports, C type, Stainless steel 1. 4401, Hose I. D. 38, for plug Ø 54 mm, Pressure max. 16 barHigh-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection. A male part and a female part are joined together by shifting the handles. There is no need to turn the hose! Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc. All Kamlok quick coupling boxes and Kamlok closure boxes are supplied with NBR seal.
Attributes
A
87,4 mm
For inner hose Ø
38
For plug Ø
54 mm
Max. operating pressure
16 bar
Riegler article number
108102
Sealing material
NBR, oil and petrol resistant
Temperature range max.
95 °C
Temperature range min.
-20 °C
c
110 mm
