Coupling plug type A

DN 40 IG 1.1/2" BSPP Kamlok, stainless steel
Item-no.: 1117580EAN: 4047322404839

Quantity: ​​ 1 STKPackable
Short-term Sourcing

Description

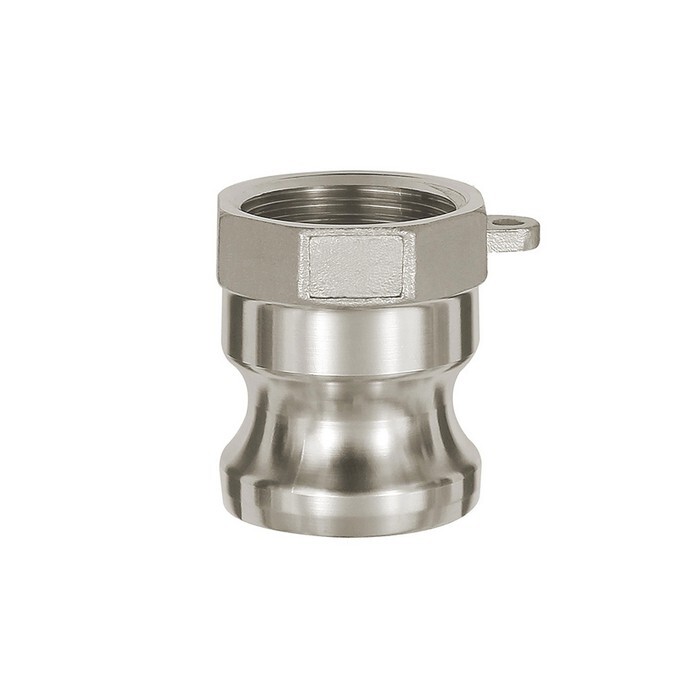

Kamlok quick-connect plug with interior thread, A type, Stainless steel 1. 4401, G 1 1/2, Plug Ø 53 mm, Pressure max. 16 barHigh-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection. A male part and a female part are joined together by shifting the handles. There is no need to turn the hose! Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Attributes
L
50,5 mm
Max. operating pressure
16 bar
Plug-Ø
53 mm
Riegler article number
108142
Screw thread
G 1 1/2
Sealing material
NBR, oil and petrol resistant
Temperature range max.
95 °C
Temperature range min.
-20 °C
