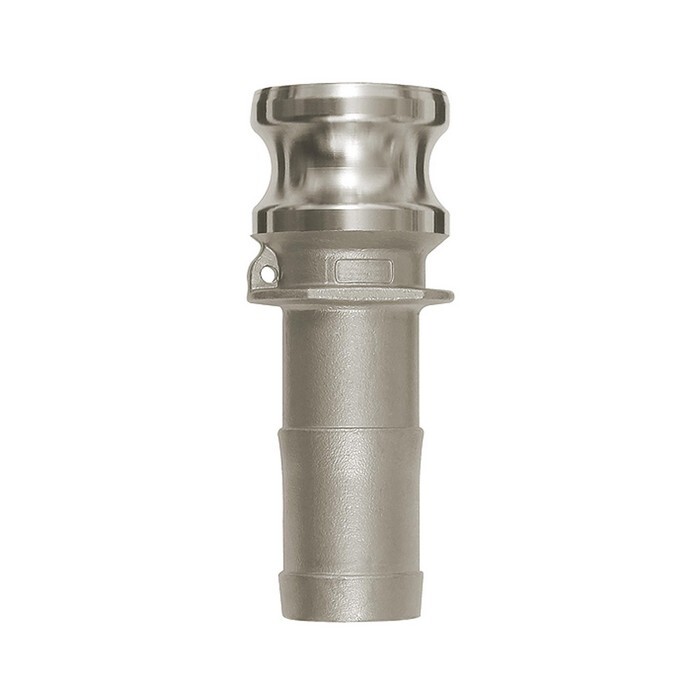

Coupling plug type E

DN 32 Spigot 32 mm Kamlok, stainless steel
Item-no.: 1117603EAN: 4047322404907

Quantity: ​​ 1 STKPackable
Immediately Available

Description
Kamlok quick-connect plug, Hose sleeve, E type, Stainless steel 1. 4401, for hose I. D. 32, Plug Ø 46 mm, Pressure max. 16 barHigh-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection. A male part and a female part are joined together by shifting the handles. There is no need to turn the hose! Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Attributes
For inner hose Ø
32
L
112 mm
Max. operating pressure
16 bar
Plug-Ø
46 mm
Riegler article number
108149
Sealing material
NBR, oil and petrol resistant
Temperature range max.
95 °C
Temperature range min.
-20 °C
