Laser receiver LR1G
0-150 m Bosch 0.601.069.700Item-no.: 1269780Supplier number: 0601069700EAN: 3165140583183
Quantity:
1 STKPackable
Description

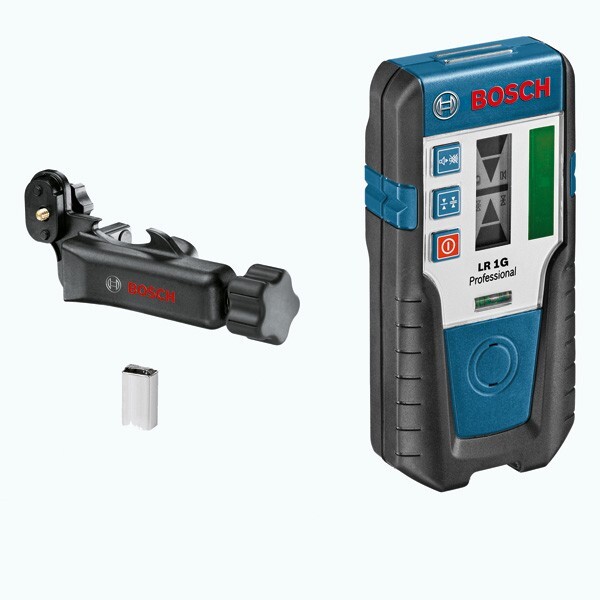

Laser Receiver LR 1G, Increased benefit with accessories, Handy receiver for indoor and outdoor use for ranges of up to 150 m in combination with GRL 300 HVG Professional rotation laser, Visual and audible indication of green laser beam plane, Dust and splash protection (IP65), Bracket (1 608 M00 70F), 1 x 9 V block battery (6LR61)
Attributes
Dust and splash protection
IP 65
Fernbedienung
nein
Measuring accuracy (fine/coarse)
± 1 mm/± 3 mm
Measuring accuracy coarse
± 3 mm
Measuring accuracy fine
± 1 mm
Power supply
1 x 9 V 6LR61 Block
Range
0 - 150 m
Range, from
0 m
Range, receiver
150 m
Range, receiver, value
150 m
Range, up to
15 m
Receiver type
Rotating laser
Suitable for
GRL 300 HVG Professional
Weight, approx.
250 g
