Description

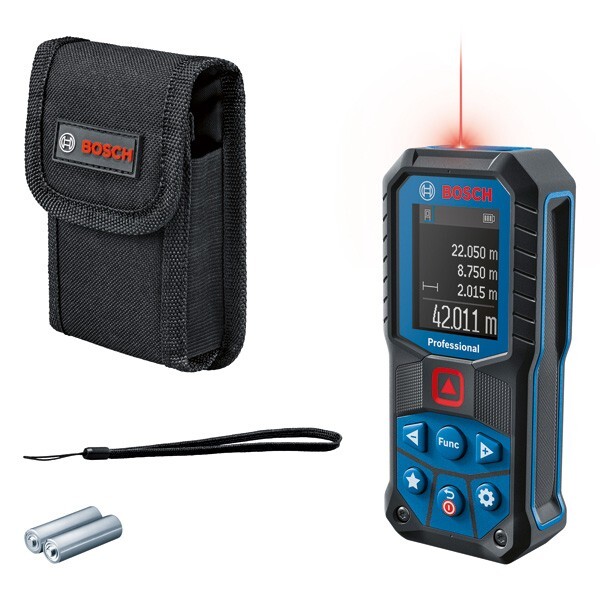

Laser Measure GLM 50-22, The GLM 50-22 Professional withstands rough conditions on construction sites. Its IP65 design provides complete protection from dust particles and jets of water, while its shock-absorbing housing brings 1.5-m drop resistance even on hard concrete. With a customisable button, favourite measurement functions or settings can be defined. Its intuitive user interface supports 30 languages and consists of a colour display and Big Numbers Mode for better readability. For self-explaining usage it features a new help function that shows all measurement options. For electricians, HVAC installers, and plumbers, it is ideal when placing and fitting elements on wood, general, or drywall constructions. When used for finishing, it is perfect for painters, floor layers, tilers, or carpenters to calculate material needs. Long battery runtime regardless of whether Alkaline batteries or the optional Li-ion battery pack is used. Protective Bag, Carrying Strap, 2 x 1.5 V LR6 battery (AA)
Attributes
Automatic switch-off
5 min
Dust and splash protection
IP 65
Indirect height measurement
ja
Indirekte Längenmessung
nein
Laser class
2
Laser colour
red
Laser diode
635 nm, < 1 mW
Measuring accuracy, typ.
± 1.5 mm* (* plus application-dependent deviation)
Measuring range
0.05 - 50.00 m
Measuring time, max.
4 s
Measuring time, typ.
< 0.5 s
Min/Max measurement
ja
Number of memory values
10
Power supply
2 x 1.5 V LR6 (AA)
Shock protection
up to 1.5 m
Tripod thread
1/4"
Units of measurement
m/cm/mm/Ft/Inch/Ft-Inch
Weight, approx.
0.2 kg
