Description

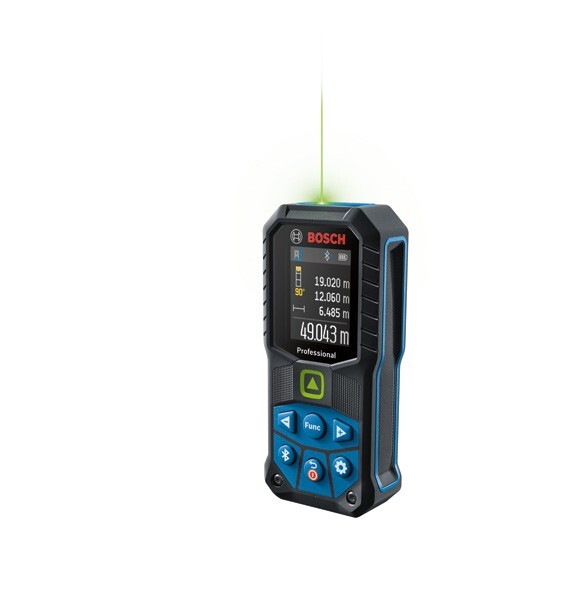

Laser Measure GLM 50-27 CG, The laser measure GLM 50-27 CG Professional offers a superior visibility of the laser spot, highly durable design, and fast documentation. While its green laser spot appears more visible compared to red laser, it is especially qualified for long-distance measurements in bright indoor conditions. Thanks to the combination of an IP65 protection-certified design and a shock-absorbing rubber casing, it withstands 1.5-metre drops even on hard concrete and rough jobsites. Bluetooth® connectivity and the Bosch MeasureOn App ensure quick documentation and transfer of measuring results in just a flash. This laser measure is optimal for documentation, calculating material needs, room and wall areas, and placing plus fitting elements, making it ideally suited for architects, electricians, and many other professions. It features both sound and vibration feedback to verify success of measurements and improved battery runtime (compared to the predecessor GLM 50 C Professional). Protective Bag, Carrying Strap, BA 3.7V 1.0Ah A and USB-C™ Cable (1 608 M00 C43)
Attributes
Automatic switch-off
5 min
Datenübertragung
Bluetooth 4.2 Low Energy
Dust and splash protection
IP 65
Indirect height measurement
ja
Indirect length measurement
ja
Integrated inclination measurement
ja
Laser class
2
Laser colour
green
Laser diode
515 nm, < 1 mW
Measuring accuracy (typical)
± 0.2°* (* plus application-dependent deviation)
Measuring accuracy, typ.
± 1.5 mm* (* plus application-dependent deviation)
Measuring range
0.05 - 50.00 m
Measuring range inclination measurement
0 - 360° (4 x 90°)
Measuring time, max.
4 s
Measuring time, typ.
< 0.5 s
Min/Max measurement
ja
Number of memory values
30
Power supply
2 x 1.5 V LR6 (AA)
Shock protection
up to 1.5 m
Tripod thread
1/4"
Units of measurement
m/cm/mm/Ft/Inch/Ft-Inch
Wall surface function
ja
Weight, approx.
0.2 kg
