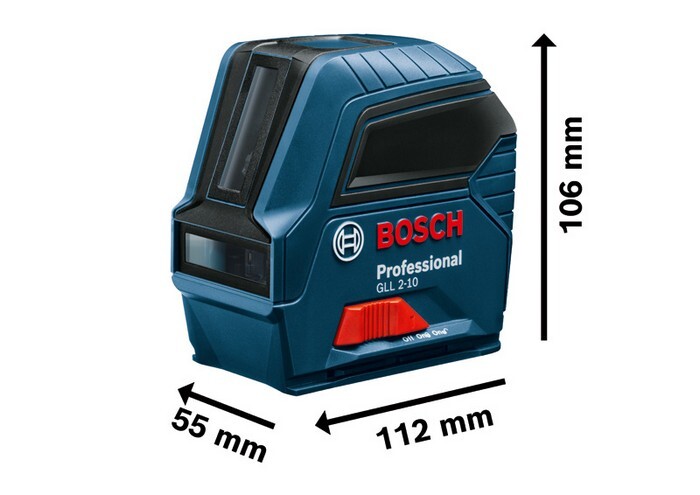

Line laser GLL 2-10
Working range 10 m Bosch 0.601.063.L00Item-no.: 1438856Supplier number: 0601063L00EAN: 3165140850247
Quantity:
1 STKPackable
Description

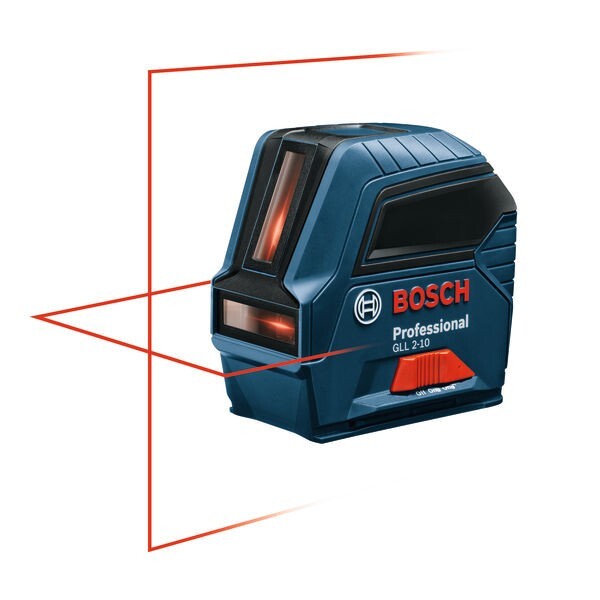

Line Laser GLL 2-10, The compact GLL 2-10 Professional makes interior levelling applications simple. With one horizontal and one vertical laser line, it is ideal for short-range work. Thanks to only one switch and two clear buttons, this compact line laser offers intuitive operation and great handling when doing levelling work. The GLL 2-10 Professional is robust with IP54 dust and splash water protection. It is suitable for various interior applications such as suspending drop-ceilings, mounting shelves, doors, and sockets, installing drainage pipes, and laying floor tiles. The GLL 2-10 Professional has a working range of up to 10 m and can self-level up to +/- 4° in less than 4 seconds. When the tool is switched off, the pendulum is locked for safe transport. Ideal for use with the optional rotating mount RM 1 Professional that can be swiftly attached via a simple slide mechanism. Protective Bag, 3 x 1.5 V LR6 battery (AA)
Attributes
Colour laser line
red
Dust and splash protection
IP 54
Laser class
2
Laser diode
630 - 650 nm, < 1mW
Levelling accuracy
± 0.3 mm/m* (* plus application-dependent deviation)
Levelling time
4 s
Operating temperature
-10 - 50 °C
Operating time, max.
9 h in cross-line operation
Power supply
3 x 1.5 V LR6 (AA)
Projection
2 Lines
Self-levelling range
± 4°
Storage temperature
-20 - 70 °C
Tripod thread
1/4", 5/8"
Weight, approx.
0.49 kg
Work area
10 m
Work area laser crosses
10 m
Work area, value
10 m
