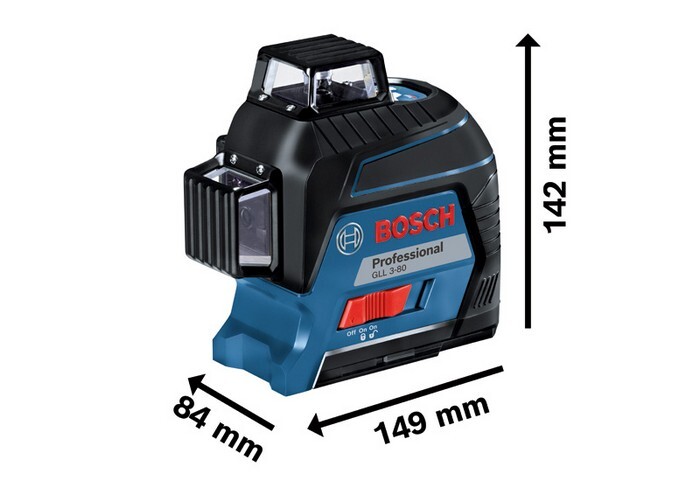

Line laser GLL 3-80
4x1.5 batteries in case Bosch 0.601.063.S00Item-no.: 1438865Supplier number: 0601063S00EAN: 3165140888356
Quantity:
1 STKPackable
Description
Line Laser GLL 3-80, The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation. This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles. The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54). 4 x 1.5 V LR6 battery (AA), Laser target plate, Pouch, Carrying case
Attributes
Colour laser line
red
Compatible laser receiver
LR 6 + 7
Dust and splash protection
IP 54
Laser class
2
Laser diode
Line: 630 - 650 nm, < 10mW
Levelling accuracy
± 0.3 mm/m*/** (* for the four horizontal intersections, ** plus application-dependent deviation)
Levelling time
4 s
Operating temperature
-10 - 40 °C
Operating time, max.
4 h in 3-line mode
Power supply
4 x 1.5 V LR6 (AA)
Projection
3 x 360° line
Self-levelling range
± 4°
Storage temperature
-20 - 70 °C
Tripod thread
1/4", 5/8"
Weight, approx.
0.82 kg
Work area
up to 30 m
Work area with receiver
up to 120 m
Work area with receiver, sign
up to
Work area with receiver, value
120 m
Work area, sign
up to
Work area, value
30 m
