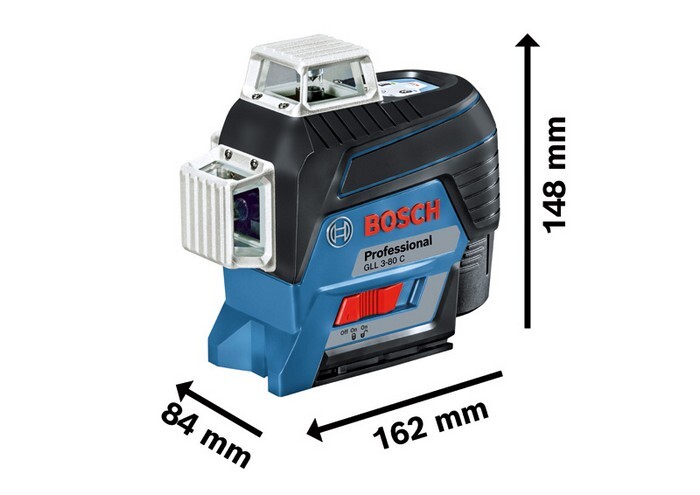

GLL 3-80 C line laser + BT 150 tripod

4x1.5 batteries, in box Bosch 0.601.063.R01
Item-no.: 1438862Supplier number: 0601063R01EAN: 3165140888295

Quantity: ​​ 1 STKPackable
Short-term Sourcing

Description
Line Laser GLL 3-80 C, The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work. This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles. Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust. Building tripod BT 150 Professional (0 601 096 B00), AA1 alkaline battery adapter (1 608 M00 C1B), Laser target plate, Pouch, 4 x 1.5 V LR6 battery (AA)
Attributes
Battery voltage
12 V
Colour laser line
red
Compatible laser receiver
LR 6 + 7
Dust and splash protection
IP 54*** (*** excluding Li-ion battery and AA1 battery adapter)
Laser class
2
Laser diode
Line: 630 - 650 nm, < 10mW
Levelling accuracy
+/- 0.2 mm/m*/** (*for the four horizontal intersections, **adding application-dependent deviation)
Levelling time
4 s
Operating temperature
-10 - 40 °C
Operating time, max.
8 hours (Li Ion) and 6 hours (4 x AA) in 3-line mode
Power supply
4 x 1.5 V LR6 (AA)
Projection
3 x 360° line
Self-levelling range
± 4°
Storage temperature
-20 - 70 °C
Tripod thread
1/4", 5/8"
Weight, approx.
0.9 kg
Work area
up to 30 m
Work area with receiver
up to 120 m
Work area with receiver, sign
up to
Work area with receiver, value
120 m
Work area, sign
up to
Work area, value
30 m
