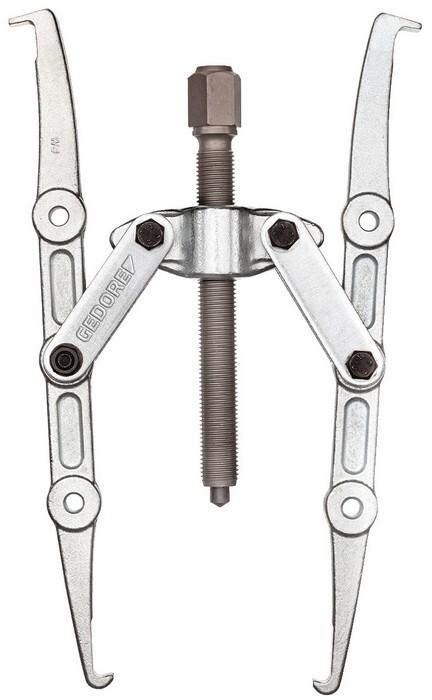

Fan puller
D.200 mm W.150 mm, 2-armed Gedore 1.14/1LItem-no.: 1022942Supplier number: 1.14/1LEAN: 4036976104554
Quantity:
1 STK
=
1 PackagingPackable
Description
Especially slim hooks, can be used on both sides, with triple adjustment of the clamping depth, The wide or narrow hook ends, which can be used on both sides, press themselves automatically when loaded, For use on fans with 2-holes up from Ø 10 mm
Attributes
Clamping depth usable
100-200 mm
Clamping range external puller (max.)
150 mm
Hook foot depth usable d2
6 mm
Hook foot thickness at the tip 2
2 mm
Hook foot thickness at the tip e1
1 mm
Hook foot width
10 mm
Hook foot width at the working surface c1
6,6 mm
Number of arms
2
Spindle thread size
M 14x1,5 x 155
Tensile force (max.)
1 t
Total hook foot depth
10 mm
Total hook foot depth f2
16,5 mm
Wrench width operating hexagon
17 mm
