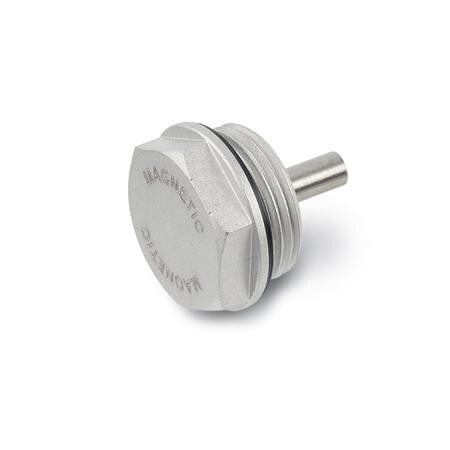

Magnetic plugs
GN 738-32-G3/4 up to 120°Celcius, NBR sealAL - Aluminium
Item-no.: 1163155Supplier number: 738-32-G3/4EAN: 4045525365155
PU (Packaging): 10 STKQuantity:
1 STKPackable
Item available in 32 variants:
Description
Magnetic plugs GN 738 attract iron particles which might be suspended in the liquid. To avoid breakage or de-magnetising, round rod magnets are fitted with a plastic distance and protection tube. This latter tube has to be removed prior to installing the plug. The sealing ring is retained in a radial undercut in the mating face which prevents it from dropping off and at the same time it cannot extrude under pressure.
Attributes
Inch thread d2
G 3/4
L1
9
L2
24
Material
AL - Aluminium
Outer diameter d1
32
RoHS
Ja
Weight
0.034 kg
d3
6
e
31.3
l3
32
s
27
