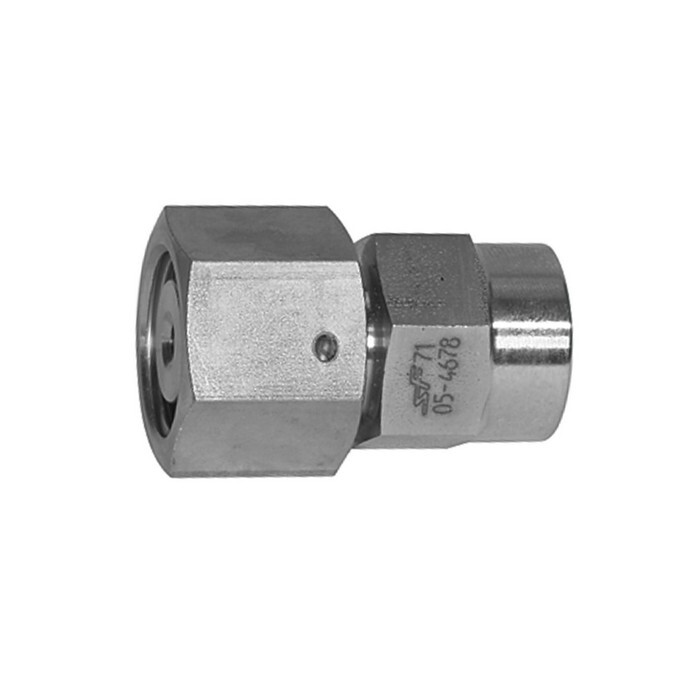

Pressure gauge connection fitting
MAVE12L, max 315 bar, DIN2353 Stainless steel, with sealing coneItem-no.: 1241387Supplier number: ES 584EAN: 4047322215848
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Pressure gauge- screw connection, Sealing cone, G 1/4 i., Nut M18x1.5 i., Pipe exterior Ø 12 mm, PN max. 315 bar, Stainless steel. Version with parallel thread and soft seal made of NBR.
Attributes
Female nut thread
M18x1,5
L1
36 mm
Material
Stainless steel 1.4571 (DIN 2353)
PN
315 bar
Pipe outer Ø
12 mm
Riegler article number
112370
Screw thread
G 1/4
