Products
Bosch

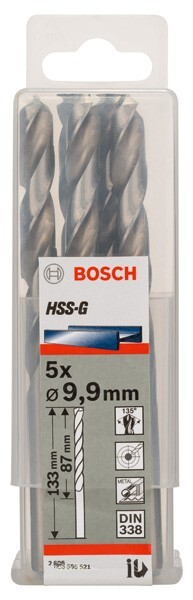

Metal drill HSS-G

DIN 338, 9,9x87x133 mm Bosch 2.608.585.521
Item-no.: 1272393Supplier number: 2608585521EAN: 3165140475266

Quantity: ​​ 1 PACK ​ = ​ 5 STKPackable
Item available in 131 variants:
Diameter (D): 9.90 mm Total length mm: 133 mm
x
Diameter (D): 1.00 mm
Total length mm: 34 mm
Diameter (D): 1.10 mm
Total length mm: 36 mm
Diameter (D): 1.30 mm
Total length mm: 38 mm
Diameter (D): 1.20 mm
Total length mm: 38 mm
Diameter (D): 1.40 mm
Total length mm: 40 mm
Diameter (D): 1.50 mm
Total length mm: 40 mm
Diameter (D): 1.70 mm
Total length mm: 43 mm
Diameter (D): 1.60 mm
Total length mm: 43 mm
Diameter (D): 1.80 mm
Total length mm: 46 mm
Diameter (D): 1.90 mm
Total length mm: 46 mm
Diameter (D): 2.10 mm
Total length mm: 49 mm
Diameter (D): 2.00 mm
Total length mm: 49 mm
Diameter (D): 2.20 mm
Total length mm: 53 mm
Diameter (D): 2.30 mm
Total length mm: 53 mm
Diameter (D): 2.50 mm
Total length mm: 57 mm
Diameter (D): 2.60 mm
Total length mm: 57 mm
Diameter (D): 2.40 mm
Total length mm: 57 mm
Diameter (D): 2.80 mm
Total length mm: 61 mm
Diameter (D): 3.00 mm
Total length mm: 61 mm
Diameter (D): 2.90 mm
Total length mm: 61 mm
Diameter (D): 2.70 mm
Total length mm: 61 mm
Diameter (D): 3.30 mm
Total length mm: 65 mm
Diameter (D): 3.10 mm
Total length mm: 65 mm
Diameter (D): 3.20 mm
Total length mm: 65 mm
Diameter (D): 3.40 mm
Total length mm: 70 mm
Diameter (D): 3.70 mm
Total length mm: 70 mm
Diameter (D): 3.60 mm
Total length mm: 70 mm
Diameter (D): 3.50 mm
Total length mm: 70 mm
Diameter (D): 3.90 mm
Total length mm: 75 mm
Diameter (D): 4.20 mm
Total length mm: 75 mm
Diameter (D): 3.80 mm
Total length mm: 75 mm
Diameter (D): 4.00 mm
Total length mm: 75 mm
Diameter (D): 4.10 mm
Total length mm: 75 mm
Diameter (D): 4.40 mm
Total length mm: 80 mm
Diameter (D): 4.50 mm
Total length mm: 80 mm
Diameter (D): 4.70 mm
Total length mm: 80 mm
Diameter (D): 4.60 mm
Total length mm: 80 mm
Diameter (D): 4.30 mm
Total length mm: 80 mm
Diameter (D): 4.90 mm
Total length mm: 86 mm
Diameter (D): 5.10 mm
Total length mm: 86 mm
Diameter (D): 4.80 mm
Total length mm: 86 mm
Diameter (D): 5.20 mm
Total length mm: 86 mm
Diameter (D): 5.00 mm
Total length mm: 86 mm
Diameter (D): 5.30 mm
Total length mm: 86 mm
Diameter (D): 5.60 mm
Total length mm: 93 mm
Diameter (D):
Total length mm: 93 mm
Diameter (D): 5.80 mm
Total length mm: 93 mm
Diameter (D):
Total length mm: 93 mm
Diameter (D): 5.50 mm
Total length mm: 93 mm
Diameter (D): 5.70 mm
Total length mm: 93 mm
Diameter (D):
Total length mm: 93 mm
Diameter (D): 5.40 mm
Total length mm: 93 mm
Diameter (D): 5.90 mm
Total length mm: 93 mm
Diameter (D): 6.00 mm
Total length mm: 93 mm
Diameter (D):
Total length mm: 93 mm
Total length mm: 93 mm
Total length mm: 93 mm
Total length mm: 93 mm
Diameter (D): 6.40 mm
Total length mm: 101 mm
Diameter (D): 6.70 mm
Total length mm: 101 mm
Diameter (D): 6.20 mm
Total length mm: 101 mm
Diameter (D): 6.50 mm
Total length mm: 101 mm
Diameter (D): 6.60 mm
Total length mm: 101 mm
Diameter (D): 6.10 mm
Total length mm: 101 mm
Diameter (D): 6.30 mm
Total length mm: 101 mm
Diameter (D): 7.00 mm
Total length mm: 109 mm
Diameter (D): 6.80 mm
Total length mm: 109 mm
Diameter (D): 7.50 mm
Total length mm: 109 mm
Diameter (D): 6.90 mm
Total length mm: 109 mm
Diameter (D): 7.40 mm
Total length mm: 109 mm
Diameter (D): 7.10 mm
Total length mm: 109 mm
Diameter (D): 7.30 mm
Total length mm: 109 mm
Diameter (D): 7.20 mm
Total length mm: 109 mm
Diameter (D): 7.80 mm
Total length mm: 117 mm
Diameter (D): 8.10 mm
Total length mm: 117 mm
Diameter (D): 8.00 mm
Total length mm: 117 mm
Diameter (D): 7.60 mm
Total length mm: 117 mm
Diameter (D): 8.40 mm
Total length mm: 117 mm
Diameter (D): 7.70 mm
Total length mm: 117 mm
Diameter (D): 8.50 mm
Total length mm: 117 mm
Diameter (D): 7.90 mm
Total length mm: 117 mm
Diameter (D): 8.20 mm
Total length mm: 117 mm
Diameter (D): 8.30 mm
Total length mm: 117 mm
Diameter (D): 9.50 mm
Total length mm: 125 mm
Diameter (D): 8.80 mm
Total length mm: 125 mm
Diameter (D): 9.20 mm
Total length mm: 125 mm
Diameter (D): 8.60 mm
Total length mm: 125 mm
Diameter (D): 9.30 mm
Total length mm: 125 mm
Diameter (D): 8.70 mm
Total length mm: 125 mm
Diameter (D): 9.00 mm
Total length mm: 125 mm
Diameter (D): 9.40 mm
Total length mm: 125 mm
Diameter (D): 8.90 mm
Total length mm: 125 mm
Diameter (D): 9.10 mm
Total length mm: 125 mm
Diameter (D): 10.20 mm
Total length mm: 133 mm
Diameter (D): 10.00 mm
Total length mm: 133 mm
Diameter (D): 10.40 mm
Total length mm: 133 mm
Diameter (D): 9.70 mm
Total length mm: 133 mm
Diameter (D): 9.80 mm
Total length mm: 133 mm
Diameter (D): 10.50 mm
Total length mm: 133 mm
Diameter (D): 9.90 mm
Total length mm: 133 mm
Diameter (D): 10.10 mm
Total length mm: 133 mm
Diameter (D): 10.30 mm
Total length mm: 133 mm
Diameter (D): 10.60 mm
Total length mm: 133 mm
Diameter (D): 9.60 mm
Total length mm: 133 mm
Diameter (D): 11.20 mm
Total length mm: 142 mm
Diameter (D): 10.90 mm
Total length mm: 142 mm
Diameter (D): 10.80 mm
Total length mm: 142 mm
Diameter (D): 11.10 mm
Total length mm: 142 mm
Diameter (D): 11.60 mm
Total length mm: 142 mm
Diameter (D): 10.70 mm
Total length mm: 142 mm
Diameter (D): 11.50 mm
Total length mm: 142 mm
Diameter (D): 11.00 mm
Total length mm: 142 mm
Diameter (D): 11.80 mm
Total length mm: 142 mm
Diameter (D): 11.30 mm
Total length mm: 142 mm
Diameter (D): 11.70 mm
Total length mm: 142 mm
Diameter (D): 11.40 mm
Total length mm: 142 mm
Diameter (D): 13.00 mm
Total length mm: 151 mm
Diameter (D): 12.10 mm
Total length mm: 151 mm
Diameter (D): 12.60 mm
Total length mm: 151 mm
Diameter (D): 12.20 mm
Total length mm: 151 mm
Diameter (D): 12.00 mm
Total length mm: 151 mm
Diameter (D): 12.40 mm
Total length mm: 151 mm
Diameter (D): 12.80 mm
Total length mm: 151 mm
Diameter (D): 12.50 mm
Total length mm: 151 mm
Diameter (D): 12.90 mm
Total length mm: 151 mm
Diameter (D): 12.30 mm
Total length mm: 151 mm
Diameter (D): 12.70 mm
Total length mm: 151 mm
Diameter (D): 11.90 mm
Total length mm: 151 mm
Diameter (D): 14.00 mm
Total length mm: 160 mm
Diameter (D): 15.00 mm
Total length mm: 169 mm
Diameter (D): 16.00 mm
Total length mm: 178 mm
Short-term Sourcing

Description

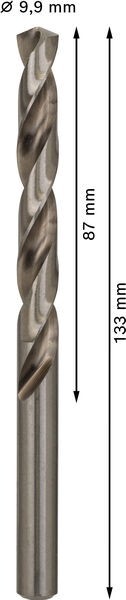

The HSS Twist Drill Bit Ground is for drilling through metal with maximum precision. The bit's exposed 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering, delivering maximum precision. The split-point tip also eliminates any need to pre-punch or pilot drill for up to 10 mm. This precision-ground bit made of HSS (high-speed steel) enables up to 40% faster drilling rate and up to 50% lower feed pressure than standard-ground HSS drill bits with chisel edges. This bit is designed for drilling holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics. The HSS Twist Drill Bit Ground is manufactured to DIN 338. The drill bit is Type N (flute angle) with a 135-degree tip and a diameter tolerance of h8.
Attributes
Arbeitslänge
87 mm
Diameter (D)
9.90 mm
Overall length (L2)
133 mm
Total length mm
133 mm
Working length (L1)
87 mm
