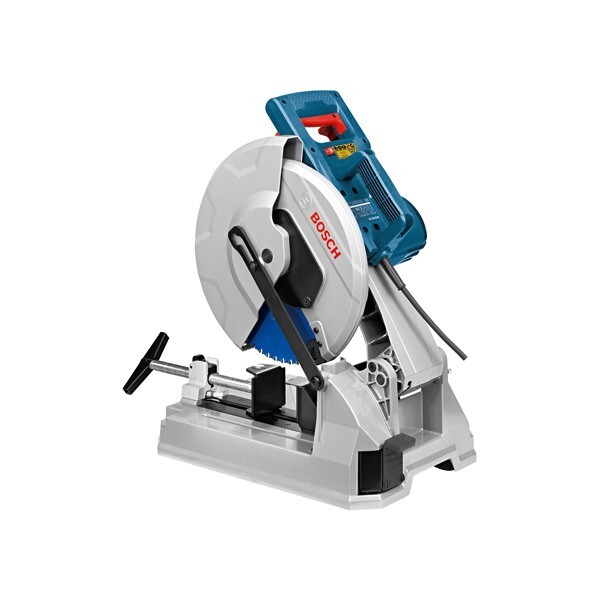

Metal cutting saw GCD 12 JL
Bosch 0.601.B28.000Item-no.: 1269978Supplier number: 0601B28000EAN: 3165140721561
Quantity:
1 STKPackable
Description
Metal Cut-off Saw GCD 12 JL, Precise results, less rework and up to 100% spark-free, Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades, Integrated laser allows precise cutting guidance, Up to 100% spark-free for a safe working environment, 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
Attributes
Cutting capacity L-profile 0°
110 x 110 mm
Cutting capacity L-profile 45° mitre
85 x 85 mm
Cutting capacity for L-profile 0°, width
110 mm
Cutting capacity for L-profile 45° mitre, height
85 mm
Cutting capacity for L-profile 45° mitre, width
85 mm
Cutting capacity for rectangle 0°, height
158 mm
Cutting capacity for rectangle 0°, width
80 mm
Cutting capacity for rectangle 45° mitre, height
85 mm
Cutting capacity for rectangle 45° mitre, width
85 mm
Cutting capacity for square 0°, height
100 mm
Cutting capacity for square 0°, width
100 mm
Cutting capacity for square 45° mitre, width
85 mm
Cutting capacity rectangle 0°
158 x 80 mm
Cutting capacity rectangle 45° mitre
85 x 85 mm
Cutting capacity square 0°
100 x 100 mm
Cutting capacity square 45° mitre
85 x 85 mm
Cutting capacity with L-profile 0°, height
110 mm
Cutting capacity with square 45° mitre, height
85 mm
Idle speed
1500 min-1
Measurement uncertainty k (cutting metal)
1.5 m/s²
Nominal input power
2000 W
Tool dimensions (width x length x height)
327 x 517 x 383 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
480 x 580 x 390 mm
Vibration emission value ah [Cutting metal]
3.5 m/s²
Voltage
240 V
Weight
20.0 kg
Werkzeugabmessungen (Länge)
517 mm
