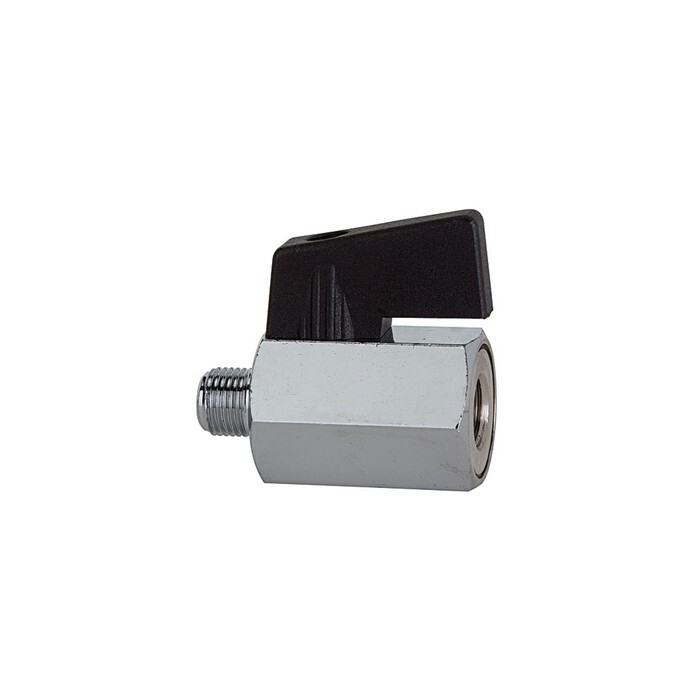

Mini ball valve nickel-plated brass
IG/AG 1/8", BL 38 mm, max 10 bar Plastic wing handle smooth surfaceItem-no.: 1116331Supplier number: 375.10EAN: 4047322081146
Quantity:
1 STKPackable
Item available in 10 variants:
Description
Mini ball valve, Smooth surface, nickel-plated brass, Medium temp. -10°C to 70°C (short term 90°C), G1/8 IT/ET, DN8, PN max. 10 bar
Attributes
A
22 mm
Ambient temperature max.
70 °C
Ambient temperature min.
-10 °C
Application range
Compressed air, water, oils, non-toxic gases
Ball
Nickel-plated brass
Ball seal
PTFE
DN
8
Housing
Nickel-plated brass
L
39 mm
Max. operating pressure
10 bar
Medium temperature max.
70 °C
Medium temperature min.
-10 °C
Riegler article number
103343
Rotary handle
Plastic
SW
20 mm
Screw thread
G 1/8 IG/AG
Spindle seal
NBR
Thread material
Nickel-plated brass
b
27,2 mm
