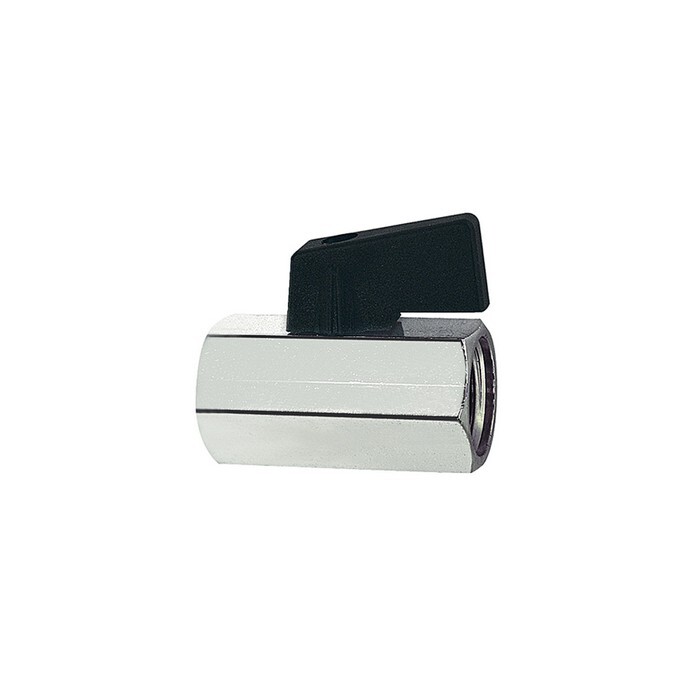

Mini ball valve nickel-plated brass
IG/IG 1/2", BL 47 mm, max 10 bar Plastic wing handle smooth surfaceItem-no.: 1116326Supplier number: 375.03EAN: 4047322081115
Quantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
Mini ball valve, Smooth surface, nickel-plated brass, Medium temp.-10 °C to 70 °C (short term 90 °C), G 1/2 IT, DN10 PN max.10 bar.
Attributes
A
22 mm
Ambient temperature max.
70 °C
Ambient temperature min.
-10 °C
Application range
Compressed air, water, oils, non-toxic gases
Ball
Nickel-plated brass
Ball seal
PTFE
DN
10
Housing
Nickel-plated brass
L
47 mm
Max. operating pressure
10 bar
Medium temperature max.
70 °C
Medium temperature min.
-10 °C
Riegler article number
103342
Rotary handle
Plastic
SW
24 mm
Screw thread
G 1/2 IG
Spindle seal
NBR
Thread material
Nickel-plated brass
b
29,5 mm
