Optical levelling device
GOL32D EU + BT160 + GR500 + Case Bosch 0.601.068.502Item-no.: 1571986Supplier number: 0601068502EAN: 3165140745017
Quantity:
1 STKPackable
Description

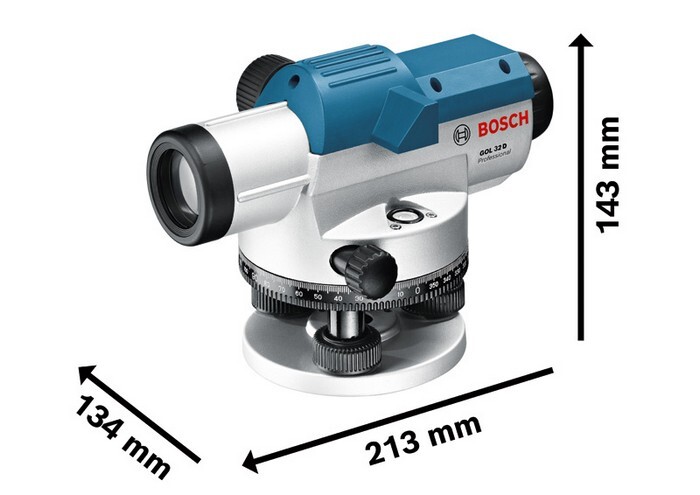

Optical Level GOL 32 D, Robust and reliable – ideal for outdoor use, Ideal for outdoor use due to a robust housing with dust and splash protection (IP54), Fast aperture for a sharp image of the target, Compensator lock for safe transport, Lens cover, Plumb bob, Adjusting pin, Carrying case (1 600 A00 0LF), Building tripod BT 160 Professional (0 601 091 200), Measuring rod GR 500 Professional (0 601 094 300)
Attributes
Dust and splash protection
IP 54
Levelling accuracy
± 1 mm per 30 m
Magnification
32 x
Operating temperature
-10 - 50 °C
Storage temperature
-20 - 70 °C
Tripod thread
5/8"
Unit of measurement
360 degrees
Weight, approx.
1.5 kg
Work area
120 m
Work area, value
120 m
