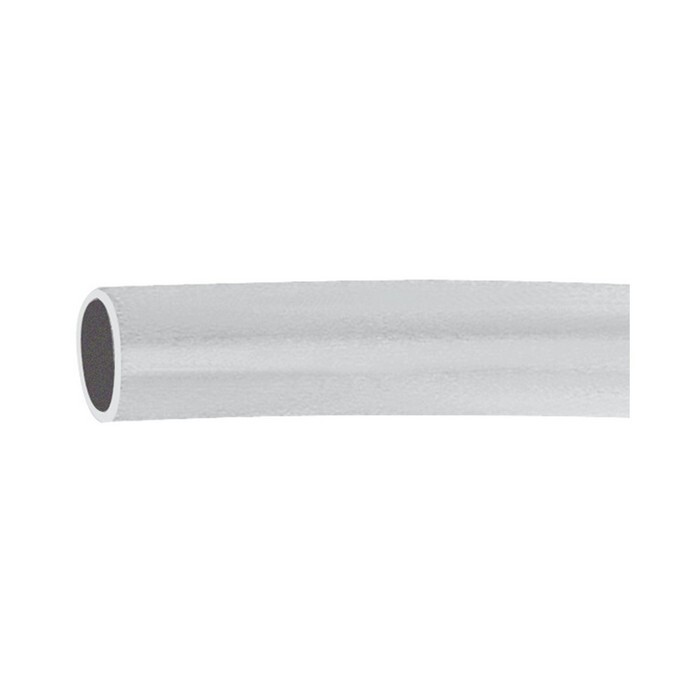

PTFE hose nature
NW 6/4-Flexible -60 - +260°C, 25 barItem-no.: 1120527Supplier number: 259.32 NEAN: 4047322068468
PU (RO): 50 MeterPU (Packaging): 50 MeterQuantity:
1 MeterPackable
Item available in 6 variants:
Description
PTFE hose, natural, Temperature range -60 °C to 260 °C, Hose Ø 6x4, PN at 20 °C max. 25 bar, Roll of 50 mPTFE hose combining excellent anti-friction properties with a high temperature resistance up to 260°C. Resistant to the majority of aggressive media. Extremely low friction coefficient. The hose complies with the requirements of the FDA 21 CFR 177. 1550 food regulation.
Attributes
Bending radius min.
15 mm
Colour
nature
Hose-Ø inside
4 mm
Hose-Ø outer
6 mm
Max. operating pressure at 20 °C
25 bar
Riegler article number
113871
Roll length
50 m
Temperature range max.
260 °C
Temperature range min.
-60 °C
