Panel saw GCM 12 SDE
Bosch 0.601.B23.100Item-no.: 1269974Supplier number: 0601B23100EAN: 3165140769648
Quantity:
1 PiecePackable
Price and stock visible after login
Description

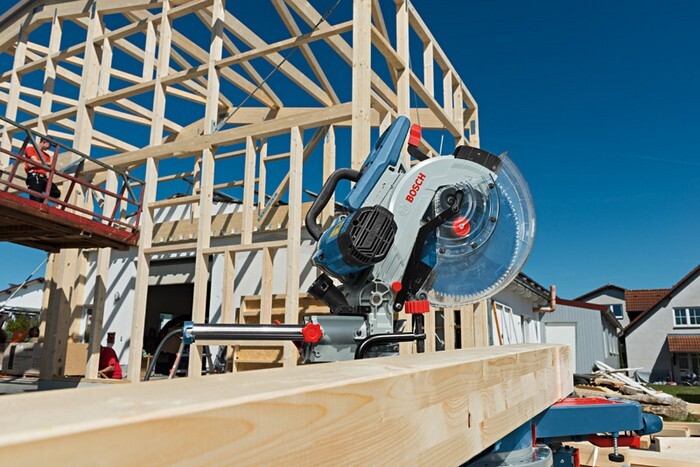

Sliding Mitre Saw GCM 12 SDE, Make light work of large workpieces with th GCM 12 SDE Professional. Its extremely high cutting capacity of 120 mm vertical and 400 mm horizontal enables cuts in very large and bulky objects. The mitre saw´s variable cutting speed makes the GCM 12 SDE Professional highly versatile for use in various materials. For highest convenience, it ensures quick and tool-less saw blade changes. This mitre saw is intended for cross, mitre, bevel, and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The GCM 12 SDE Professional also includes features such as bevel detent turrent, intelligent brake system, precision laser, soft start, and speed selection. 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72 (2 608 642 531), Clamp (1 609 B06 203)
Attributes
Cutting capacity 0°
85 x 370 mm
Cutting capacity 0° with spacer (max. horizontal)
70 x 400 mm
Cutting capacity 0° with spacer (max. horizontal), height
70 mm
Cutting capacity 0° with spacer (max. horizontal), width
400 mm
Cutting capacity 0° with spacer (max. vertical)
120 x 200 mm
Cutting capacity 0° with spacer (max. vertical), height
120 mm
Cutting capacity 0° with spacer (max. vertical), width
200 mm
Cutting capacity 45° inclination
60 x 360 mm
Cutting capacity 45° mitre
85 x 250 mm
Cutting capacity at 0°, height
85 mm
Cutting capacity at 0°, width
370 mm
Cutting capacity at 45° inclination, height
60 mm
Cutting capacity at 45° inclination, width
360 mm
Cutting capacity at 45° mitre, height
85 mm
Cutting capacity at 45° mitre, width
250 mm
Idle speed
3100 - 4000 min-1
Inclination adjustment
47 ° / 47 °
Inclination adjustment, left
47 °
Inclination adjustment, right
47 °
Measurement uncertainty k (sawing wood)
1.5 m/s²
Mitre adjustment
52 ° / 60 °
Mitre adjustment, left
52 °
Mitre adjustment, right
60 °
Nominal input power
1800 W
Saw blade bore diameter
30 mm
Saw blade diameter
305 mm
Tool dimensions (width x length x height)
600 x860 x530 mm
Vibration emission value ah [Sawing wood]
2.5 m/s²
Voltage
220 - 240 V
Voltage, from
220 V
Voltage, up to
240 V
Weight
28.6 kg
