Bosch

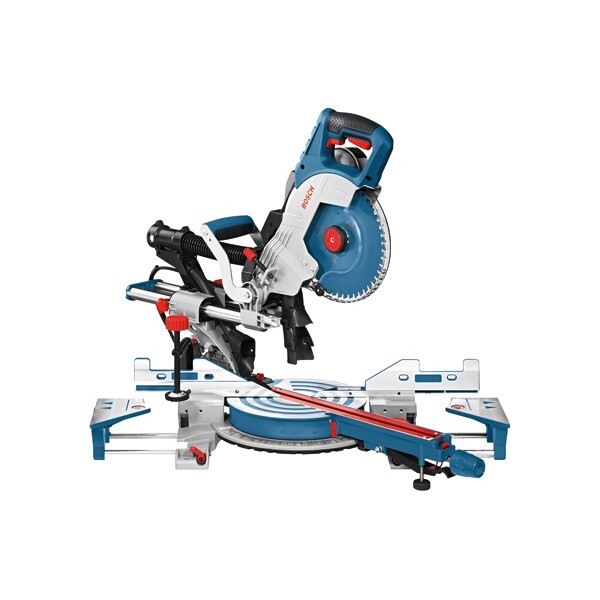

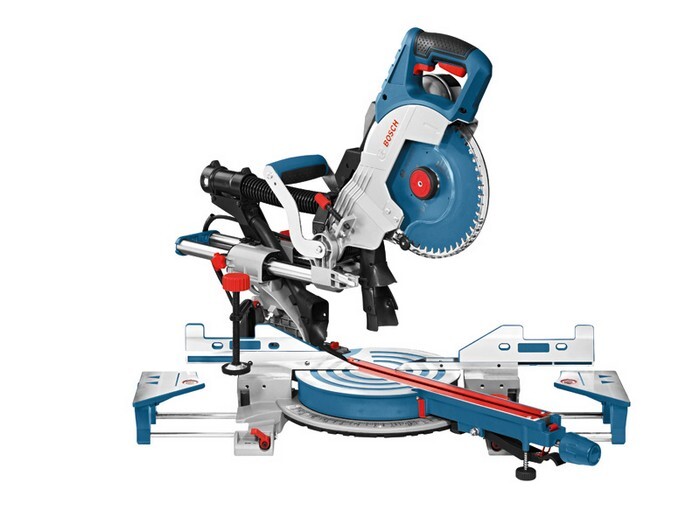

Panel saw GCM 8 SDE

Bosch 0.601.B19.200
Item-no.: 1250546Supplier number: 0601B19200EAN: 3165140654364

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Sliding Mitre Saw GCM 8 SDE, Power and flexibility in one: The GCM 8 SDE Professional allows quick and precise work in almost any type of material. Its convenient, one-handed transport handle makes it lightweight and compactly designed for jobs on the go. Variable cutting speed enables high flexibility when cutting materials like plastic and aluminium. For highest convenience, it ensures quick and tool-less sawblade changes. This mitre saw is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The GCM 8 SDE Professional also includes features such as 2-point dust extraction, bevel detent turrent, precision laser, soft start, double-sided tilt adjustment, and speed selection. Clamp (1 609 B04 224), 1 x circular saw blade, Expert for Wood, 216 x 30 x 2.4 mm, 48 (2 608 642 497), SDS saw blade lock (spare part number 1 609 B05 323)
Attributes
Cutting capacity 0°
70 x 312 mm
Cutting capacity 45° inclination
45 x 312 mm
Cutting capacity 45° mitre
70 x 225 mm
Cutting capacity at 0°, height
70 mm
Cutting capacity at 0°, width
312 mm
Cutting capacity at 45° inclination, height
45 mm
Cutting capacity at 45° inclination, width
312 mm
Cutting capacity at 45° mitre, height
70 mm
Cutting capacity at 45° mitre, width
225 mm
Idle speed
3500 - 5000 min-1
Inclination adjustment
47 ° / 47 °
Inclination adjustment, left
47 °
Inclination adjustment, right
47 °
Measurement uncertainty k (sawing wood)
1.5 m/s²
Mitre adjustment
52 ° / 60 °
Mitre adjustment, left
52 °
Mitre adjustment, right
60 °
Nominal input power
1600 W
Saw blade bore diameter
30 mm
Saw blade diameter
216 mm
Tool dimensions (width x length x height)
910 x460 x410 mm
Vibration emission value ah [Sawing wood]
2.5 m/s²
Voltage
230 - 240 V
Voltage, from
230 V
Voltage, up to
240 V
Weight
18.9 kg
