Panel saw GCM 8 SJL
with circular saw blade 216x30 mm Bosch 0.601.B19.100Item-no.: 1269971Supplier number: 0601B19100EAN: 3165140654319
Quantity:
1 STKPackable
Description

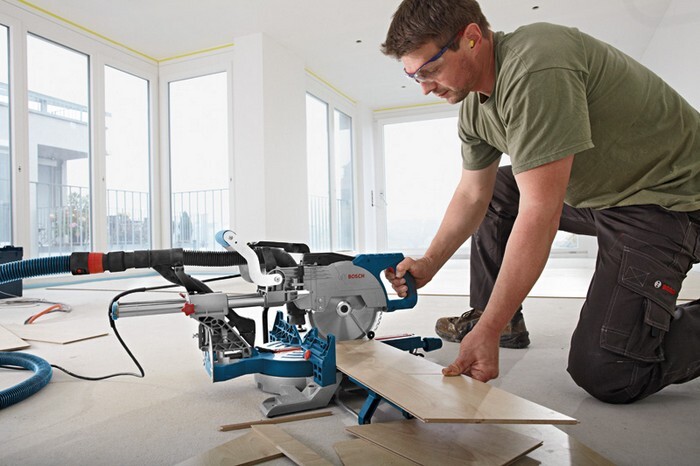

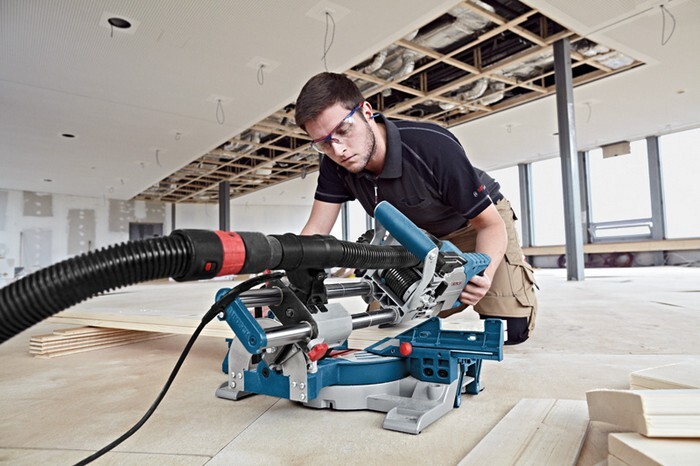

Sliding Mitre Saw GCM 8 SJL, Less weight, less dust, more performance: the compact GCM 8 SJL Professional offers cleaner solutions when it comes to cutting through large workpieces. Its cutting capacity of 70 mm vertical and 312 mm horizontal makes it ideal for sawing large workpieces. With a 2-point dust extraction system, the mitre saw provides optimised dust management, allowing for a clean work area during operation. Its light, compact design and one-handed transportation handle ensure an easy transport. The GCM 8 SJL Professional is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The GCM 8 SJL Professional also includes features such as precision laser and soft start. Clamp (1 609 B04 224), 1 x circular saw blade, Optiline Wood, 216 x 2.0/1.4 x 30 mm, 48 (2 608 640 432)
Attributes
Cutting capacity 0°
70 x 312 mm
Cutting capacity 45° inclination
45 x 312 mm
Cutting capacity 45° mitre
70 x 225 mm
Cutting capacity at 0°, height
70 mm
Cutting capacity at 0°, width
312 mm
Cutting capacity at 45° inclination, height
45 mm
Cutting capacity at 45° inclination, width
312 mm
Cutting capacity at 45° mitre, height
70 mm
Cutting capacity at 45° mitre, width
225 mm
Idle speed
5500 min-1
Inclination adjustment
47 ° / 2 °
Inclination adjustment, left
47 °
Inclination adjustment, right
2 °
Leerlaufdrehzahl, von
5500 min-1
Measurement uncertainty k (sawing wood)
1.5 m/s²
Mitre adjustment
52 ° / 60 °
Mitre adjustment, left
52 °
Mitre adjustment, right
60 °
Nominal input power
1600 W
Saw blade bore diameter
30 mm
Saw blade diameter
216 mm
Tool dimensions (width x length x height)
910 x460 x630 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
480 x 845 x 440 mm
Vibration emission value ah [Sawing wood]
2.5 m/s²
Voltage
230 - 240 V
Voltage, from
230 V
Voltage, up to
240 V
Weight
17.3 kg
Werkzeugabmessungen (Länge)
460 mm
