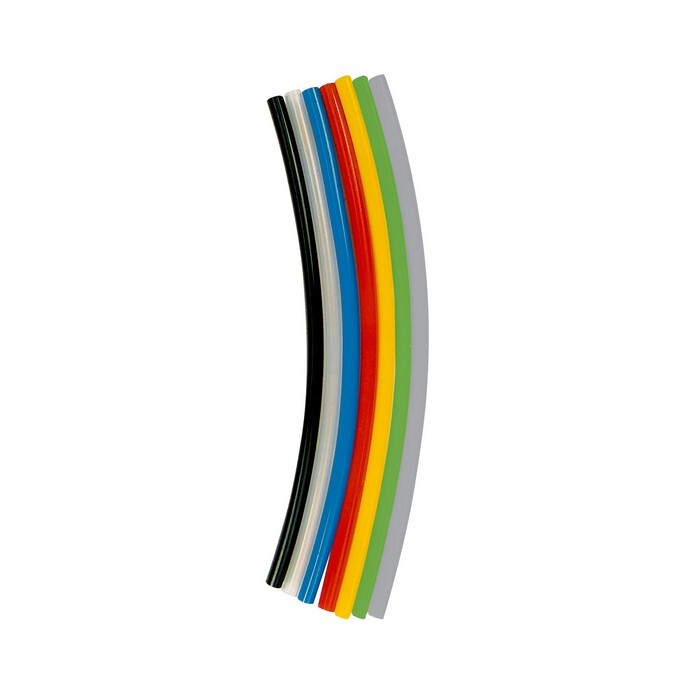

Polyamide hose
Hose Ø 8x1, black RO25Item-no.: 1120663Supplier number: 259.12 S-V2EAN: 4047322686815
PU (RO): 25 MeterPU (Packaging): 25 MeterQuantity:
1 MeterPackable
Description
Polyamide hose (PA 12 HIPHL), Temperature -40 °C to 130 °C, Hose Ø 8x1, PN at 23 °C max. 21 bar, black, Roll of 25 mPA 12 has a low water absorptive capacity and is therefore dimensionally stable if the ambient humidity varies. PA 12 resists greases, oil, fuels, hydraulic fluids, alkalis and salt solutions. Sufficient UV resistance can only be guaranteed if the material is pigmented black! Suitable for use with push-in fittings as externally calibrated. Suitable for vacuum up to 12x9 mm. Main applications: - Compressed air lines (low-pressure range) in industry and manual trades. - Hydraulic lines (miniature hydraulics) in instrumentation and control. - Lines for liquid and free-flowing substances. - Pneumatic braking systems in motor vehicles and trailers (DIN 73378: 1996-02 and DIN 74324-1: 1996-02). - Fuel and lubricant supply systems. - Vacuum lines
Attributes
Colour
black
Exterior-Ø
8 mm
Internal-Ø
6 mm
Length (battery)
25 m
Maximum temperature
130 °C
Minimum temperature
-40 °C
Operating pressure
21 bar
Resistance outside
UV-resistant / oil-resistant / petrol-resistant
Temperature range max.
130 °C
Temperature range min.
-40 °C
Wall thickness
1 mm
