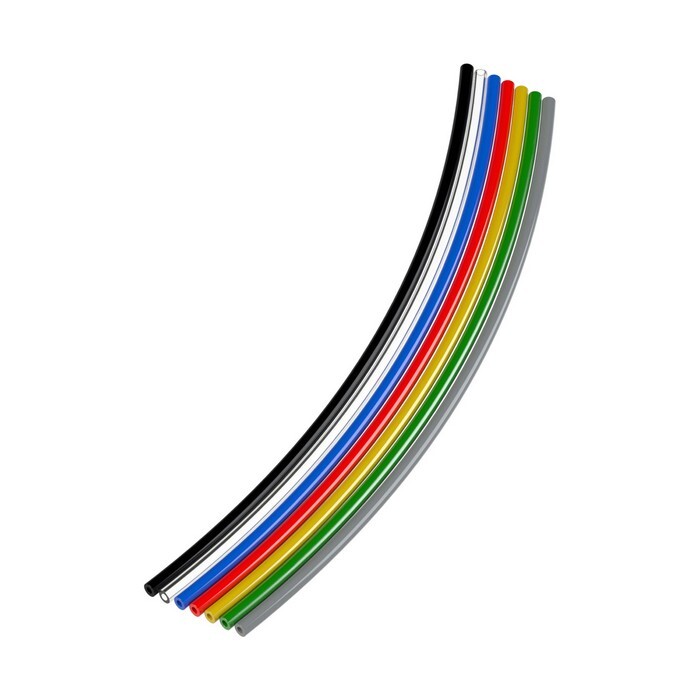

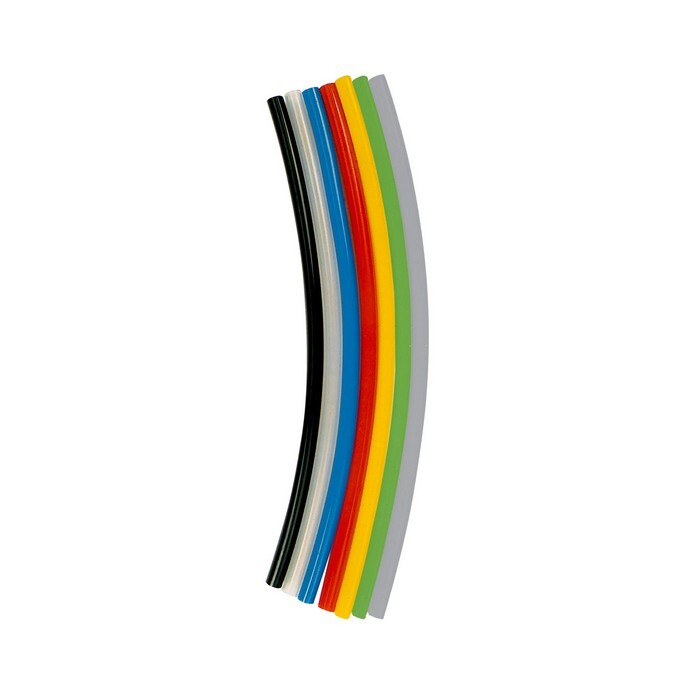

Polyurethane hose PUR silver
NW4/2, very flexible -40 - +60°CItem-no.: 1241990Supplier number: 259.04 SIEAN: 4047322281683
PU (RO): 25 MeterPU (Packaging): 25 MeterQuantity:
25 MeterPackable
Item available in 59 variants:
Description
Polyurethane hose (PUR), Temperature -20 °C to 60 °C, Hose Ø 4x1 mm, PN at 23 °C max. 16 bar, silver, Roll of 25 mPolyurethane hoses are renowned for their extreme flexibility and correspondingly narrow bending radius across a wide temperature range. They are more flexible even than LD-PE hoses and exhibit good abrasion resistance, very good low-temperature flexibility, only minimal permanent deformation when subjected to long-term stresses as well as good resistance to the majority of oils, greases, aliphatic hydrocarbons and oxygen. Main applications: - Pneumatic and hydraulic (miniature hydraulics) lines- Mechanical engineering- Engine construction- Instrumentation and control- Ideal for use with unions, as externally calibrated
Attributes
Colour
silver
Hose-Ø inside
2 mm
Hose-Ø outer
4 mm
Material
Polyurethane (PUR)
Max. operating pressure at 23 °C
16 bar
Riegler article number
113655
Roll length
25 m
Temperature range max.
60 °C
Temperature range min.
-20 °C
Wall thickness
1 mm
