1180895 #1
Ganter

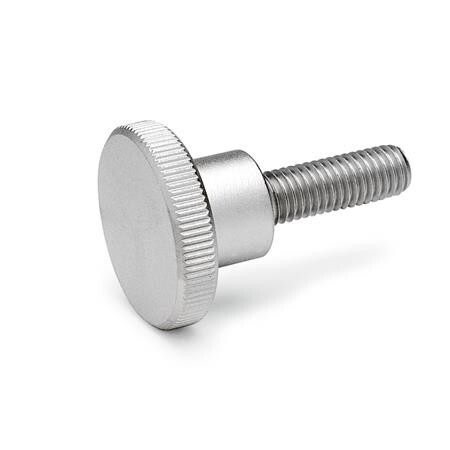

Knurled screw

DIN 464-M6-16-NI Stainless steel 1.4305 high mould
NI - Stainless steel
Item-no.: 1180895Supplier number: DIN 464-M6-16-NIEAN: 4045525254558
PU (Packaging): 10 STKQuantity: ​​ 1 STKPackable​
Item available in 192 variants:
Short-term Sourcing
Description
Knurled screws DIN 464 are turned entirely from a single piece. The thread of the screw generally extends up to the shoulder and ends in a runout without recess. They are suitable for universal use and can be quickly tightened and loosened without tools.
Attributes
Material
NI - Stainless steel
RoHS
Ja
Screw thread d1
M 6
Screw thread x1
M 6
Thread length l
16
Weight
0.029 kg
d2
24
d3
12
h
15
k
5
