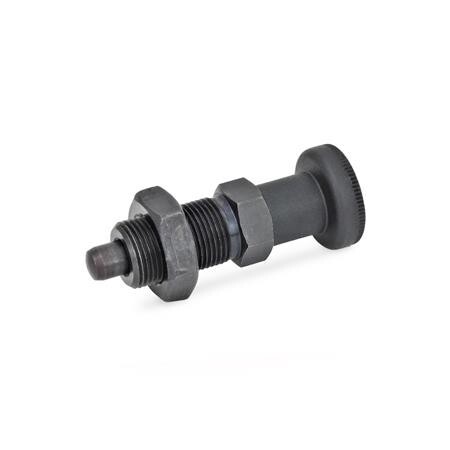

Indexing plunger
GN 617-6-AK with lock nut, with knobST - Steel
Item-no.: 1076315Supplier number: 617-6-AKEAN: 4045525315969
PU (Packaging): 10 STKQuantity:
1 STKPackable
Item available in 16 variants:
Description
Type G or GK of the indexing plungers GN 617 have been designed for applications where the indexing plunger is not operated with the standard knob. The indexing plungers are designed such that the plunger set in the end position (pressure spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
Attributes
Bolt diameter d1
6
End
24
Form
AK - with knob, with lock nut
L1
54.5
L2
6
Material
ST - Steel
RoHS
Ja
SW
14
Weight
0.043 kg
d2
M 12 x 1,5
d3
25
d4
M 6
e
16.2
l3
20
l4
6
l5 Min.
17
l6
10
l7
8
