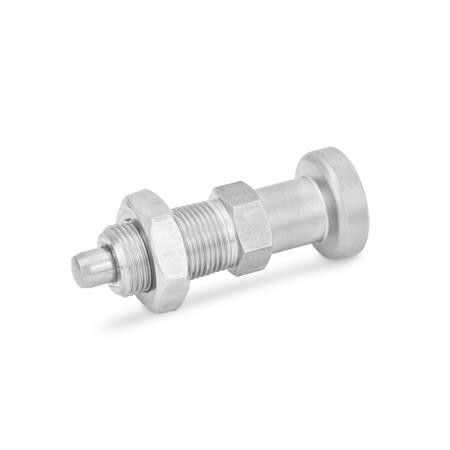

Locking bolt with knob
GN 617-8-AKN-NI stainless steelNI - Stainless steel
Item-no.: 1208565Supplier number: 617-8-AKN-NIEAN: 4045525558441
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Stainless steel indexing plungers GN 617 are designed such that the plunger set in the end position (pressure spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
Attributes
Bolt diameter d1
8
End
26
Form
AKN - with lock nut, with stainless steel knob
L1
69
L2
8
Material
NI - Stainless steel
RoHS
Ja
SW
19
Weight
0.151 kg
d2
M 16 x 1,5
d3
31
e
21.9
l3
26
l4
8
l5 Min.
23
