Rotary laser GRL 300 HV
with construction tripod BT 300 HD Bosch 0.615.994.03YItem-no.: 1148623Supplier number: 061599403YEAN: 3165140604505
Quantity:
1 STKPackable
Description

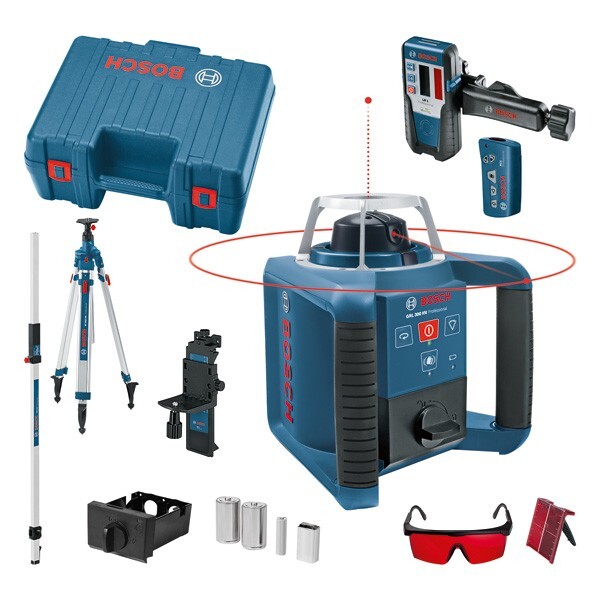

Rotation Laser GRL 300 HV, Easy handling with horizontal and vertical self-levelling, Easy to operate thanks to one button per function, and self-explanatory display, Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°), The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations, Battery compartment (spare part number 1 608 M00 05D), Building tripod BT 300 HD Professional (0 601 091 400), Carrying case, Measuring rod GR 240 Professional (0 601 094 100), Holder also available separately as an accessory (spare part number 1 608 M00 70F), Laser Receiver LR 1 Professional (0 601 015 400), Laser target (red) (spare part number 1 608 M00 05C), Laser viewing glasses (red) (spare part number 1 608 M00 05B), Remote control RC1 Professional (0 601 069 900), Universal mount WM 4 Professional (0 601 092 400), 1 x 9 V block battery (6LR61), 2 x 1.5 V LR20 battery (D), 1 x 1.5 V LR6 battery (AA)
Attributes
Colour laser line
red
Dust and splash protection
IP 54
Laser class
3R
Laser diode
635 nm, < 5 mW
Levelling accuracy
± 3.0 mm at 30 m* (* plus application-dependent deviation)
Levelling time
15 s
Operating temperature
-10 - 50 °C
Power supply
2 x 1.5 V LR20 (D)
Rotational speed
150, 300, 600 min-1
Self-levelling range
± 5° (8 %)
Storage temperature
-20 - 70 °C
Tripod thread
5/8"
Weight, approx.
1.8 kg
Work area with receiver
up to 300 m (diameter)
Work area with receiver, sign
up to
Work area with receiver, value
300 m
Work area without receiver
up to 60 m (diameter)
Work area without receiver, sign
up to
Work area without receiver, value
60 m
