Description

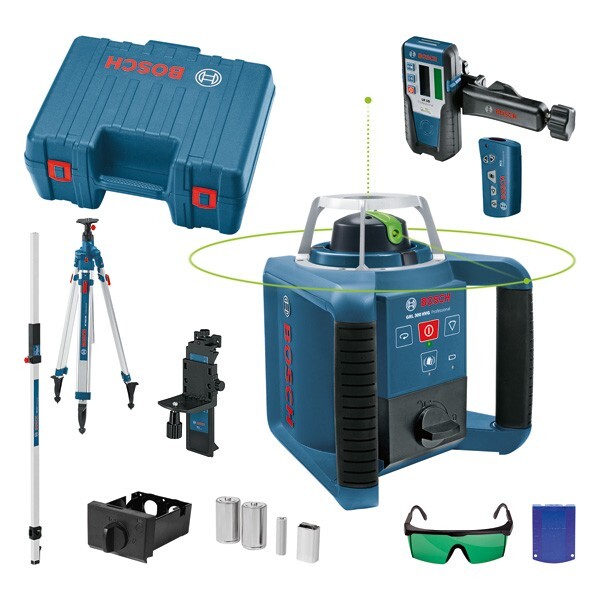

Rotation Laser GRL 300 HVG, Outstanding visibility for indoor applications, Green laser line: up to four times better visibility than a red line, Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°), The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations, Battery housing, Building tripod BT 300 HD Professional (0 601 091 400), Carrying case (spare part number 1 608 M00 05F), Measuring rod GR 240 Professional (0 601 094 100), Laser receiver LR 1G Professional (0 601 069 700), Remote control RC1 Professional (0 601 069 900), Universal mount WM 4 Professional (0 601 092 400), 1 x 9 V block battery (6LR61), 2 x 1.5 V LR20 battery (D), 1 x 1.5 V LR6 battery (AA)
Attributes
Colour laser line
green
Compatible laser receiver
LR 1G
Dust and splash protection
IP 54
Laser class
3R
Laser diode
532 nm, < 5 mW
Levelling accuracy
± 3.0 mm at 30 m* (* plus application-dependent deviation)
Levelling time
15 s
Operating temperature
0 - 40 °C
Power supply
2 x 1.5 V LR20 (D)
Rotational speed
150, 300, 600 min-1
Self-levelling range
± 5° (8 %)
Storage temperature
-20 - 70 °C
Tripod thread
5/8"
Weight, approx.
1.8 kg
Work area
100 m
Work area with receiver
300 m (diameter)
Work area with receiver, value
300 m
Work area without receiver
100 m (diameter)
Work area without receiver, value
100 m
Work area, value
100 m
