Description

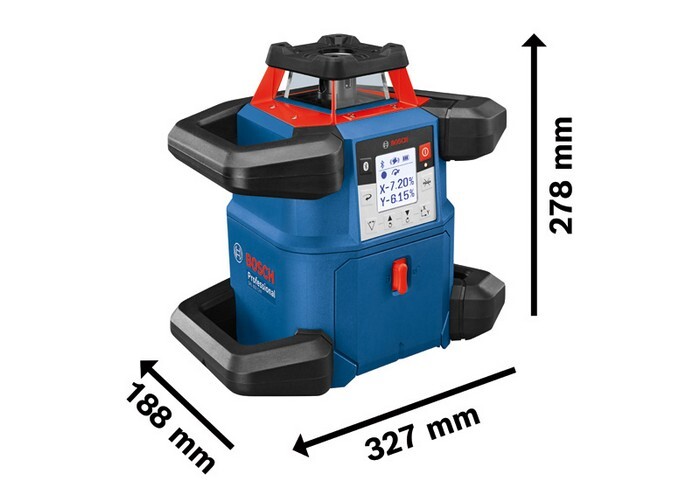

Rotation Laser GRL 600 CHV, Heavy duty, jobsite-proof – the robust GRL 600 CHV Professional endures even the harshest environments. Its sturdy design offers impact protection and has an IP68 rating against dust and water – including the battery compartment for highly flexible work in bad weather conditions. It provides convenient connectivity, enabling more focused work with less wasted time. Operating the tool is intuitive thanks to its screen and access to the levelling remote app that visualises all functions, including a dual slope setting, to save valuable time. This highly accurate laser has a long runtime, both with the 18V battery system and alkaline batteries included for continuous working. Use this tool for exterior applications when determining cut-and-fill excavation work, concrete forms, landscaping, and façade work. The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy 'mask mode' available in the app to avoid reflection and interference with other devices on the jobsite. Laser receiver LR 60 Professional (0 601 069 P00), Receiver bracket RB 60 Professional, Battery adapter BA 1 Professional, 4 x 1.5 V LR20 battery (D), 2 x 1.5 V LR6 battery (AA), L-BOXX 374 (1 600 A01 2G3)
Attributes
Battery voltage
18 V
Compatible laser receiver
LR 60
Dust and splash protection
IP 68
Laser class
2
Laser diode
630 - 650 nm, < 1mW
Levelling accuracy
± 3.0 mm at 30 m* vertical (* plus application-dependent deviation)
Operating temperature
-10 - 50 °C
Operating time, max.
70 h
Power supply
4 x D batteries
Projection
1 x 360° line
Rotational speed
150/300/600 min?1
Self-levelling range
±8.5% (±5°)
Storage temperature
-20 - 50 °C
Tripod thread
2 x 5/8"
Weight with 4.0Ah battery
4.3 kg
Weight with alkaline batteries
4.6 kg
Work area with receiver
up to 600 m (diameter)
Work area with receiver, sign
up to
Work area with receiver, value
600 m
Work area without receiver
up to 60 m (diameter)
Work area without receiver, sign
up to
Work area without receiver, value
60 m
