Description

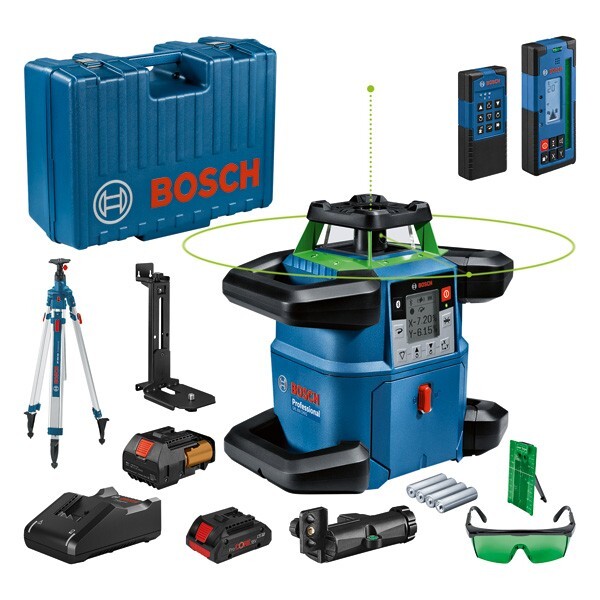

Rotation Laser GRL 650 CHVG, The robust rotary laser GRL 650 CHVG Professional with Bluetooth® connectivity takes construction site levelling to new heights of precision and efficiency. Green beam technology delivers higher visibility in different lighting conditions. The rotary laser is sturdily built to operate in rough site conditions and bad weather, withstanding up to 2-m tripod tip-over and meeting IP68 dust and water protection standards. Using the Levelling Remote App for settings overview and remote control saves time and allows total focus on the job. The versatile GRL 650 CHVG Professional is best used on outdoor levelling and grading jobs as well as interior wall, ceiling, and HVAC installation. Long runtime convenience is provided by a dual-power option that uses Bosch rechargeable 18 V Li-ion or alkaline D-Cell batteries. Optimal convenience thanks to high-tech features such as display, dual slope, slope memory, and high-quality receiver (LR 65 G Professional). Laser receiver LR 65 G Professional (0 601 069 T00), Receiver bracket RB 60 Professional, Remote control RC 6 Professional, 1 x battery ProCORE18V 4.0Ah (1 600 A01 6GB), Quick charger GAL 18V-40 Professional (1 600 A01 9RJ), Battery adapter BA 1 Professional, Wall mount WM 6 Professional, 4 x 1.5 V LR20 battery (D), 4 x 1.5 V LR6 battery (AA), Laser target plate, Laser viewing glasses (green) (spare part number 1 608 M00 05J), Carrying case, Building tripod BT 300 HD Professional (0 601 091 400)
Attributes
Battery voltage
18 V
Compatible laser receiver
LR 65 G
Dust and splash protection
IP 68
Laser class
2
Laser diode
< 1 mW, 500 - 540 nm
Levelling accuracy
± 3.0 mm at 30 m* vertical (* plus application-dependent deviation)
Operating temperature
-10 - 50 °C
Operating time, max.
60 h
Power supply
4 x D batteries
Projection
1 x 360° line
Rotational speed
150/300/600 min?1
Self-levelling range
±8.5% (±5°)
Storage temperature
-20 - 50 °C
Tripod thread
2 x 5/8"
Weight with 4.0Ah battery
4.3 kg
Weight with alkaline batteries
4.6 kg
Work area with receiver
up to 650 m (diameter)
Work area with receiver, sign
up to
Work area with receiver, value
650 m
Work area without receiver
up to 70 m (diameter)
Work area without receiver, sign
up to
Work area without receiver, value
70 m
