Description

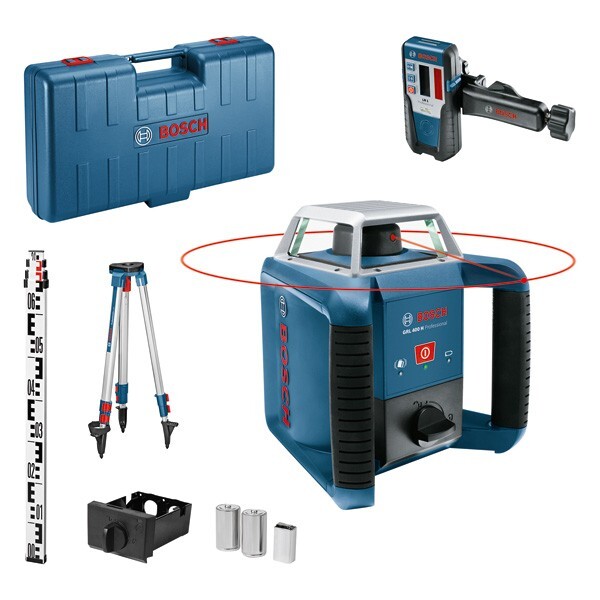

Rotation Laser GRL 400 H Set, Easy to use and ready to go – the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement – without even moving the tool. With an accuracy of ± 2.4 mm at 30m and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results. From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56. Rotation Laser GRL 400 H Professional, Laser Receiver LR 1 Professional (0 601 015 400), Building Tripod BT 152 Professional, Measuring rod GR 2400 Professional, Carrying case, Non-rechargeable battery compartment (1 609 203 M02), 2 x 1.5 V LR20 battery (D), 1 x 9 V block battery (6LR61)
Attributes
Colour laser line
red
Compatible laser receiver
LR 1
Dust and splash protection
IP 56
Laser class
2
Laser diode
635 nm, < 1 mW
Levelling accuracy
± 2.4 mm at 30 m* (* plus application-dependent deviation)
Levelling time
15 s
Operating temperature
-10 - 50 °C
Power supply
2 x 1.5 V LR20 (D)
Rotational speed
600 min-1
Self-levelling range
± 8 % (± 5°)
Storage temperature
-20 - 70 °C
Tripod thread
5/8"-11
Weight, approx.
2 kg
Work area with receiver
up to 400 m (diameter)
Work area with receiver, sign
up to
Work area with receiver, value
400 m
Work area without receiver
up to 20 m (diameter)
Work area without receiver, sign
up to
Work area without receiver, value
20 m
