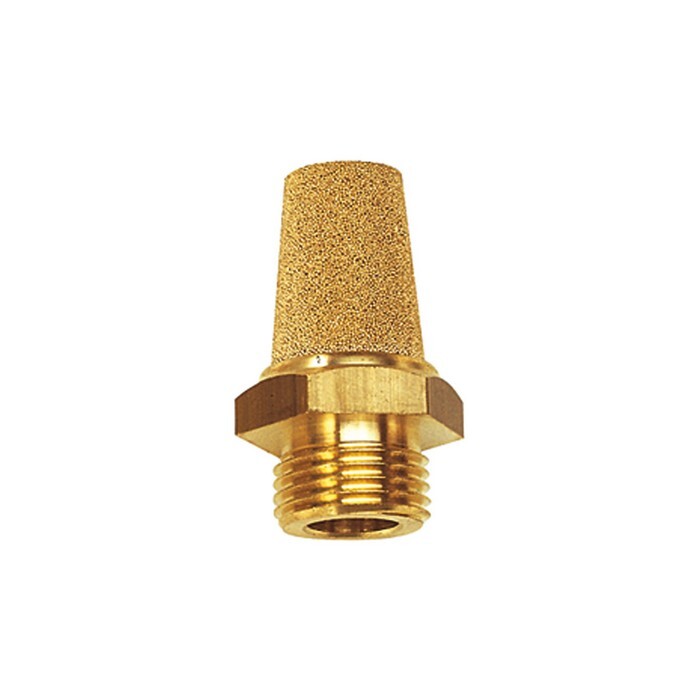

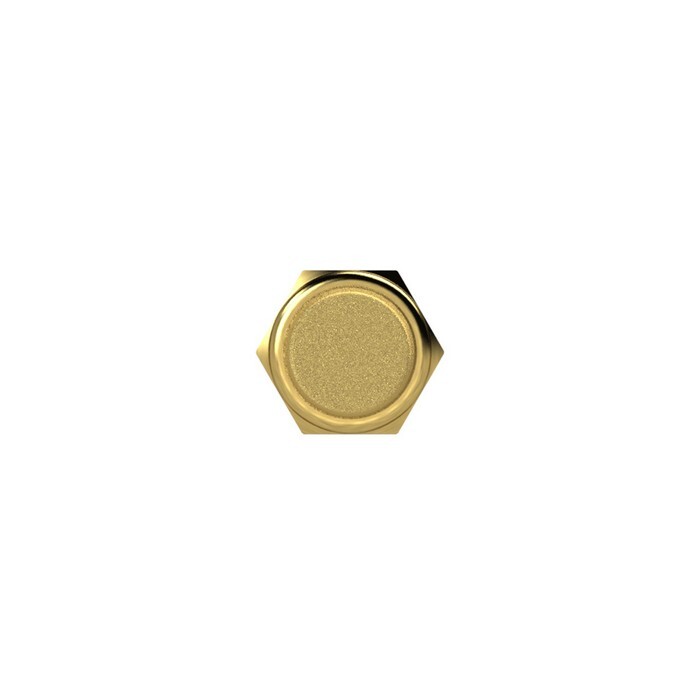

Silencer
AG 1", 0-8 bar, max 250°C Sintered bronze / brass hexagon/threadItem-no.: 1116935Supplier number: 567-6/MEAN: 4047322101257
Quantity:
1 STKPackable
Item available in 7 variants:
Description
Sintered bronze silencer, Brass thread / hexagonal, G 1, AF 36, Operating pressure 0 - 8 bar, Operating temp. -10 °C to 250 °CFor reducing the exhaust noise generated by pneumatic equipment.
Attributes
A
12 mm
Max. operating pressure
8 bar
Noise level at 6 bar
71-108 dB(A)
Operating pressure min.
0 bar
Operating temperature max.
250 °C
Operating temperature min.
-10 °C
Riegler article number
113347
SW
36 mm
Screw thread
G 1
b
67 mm
c
27 mm
