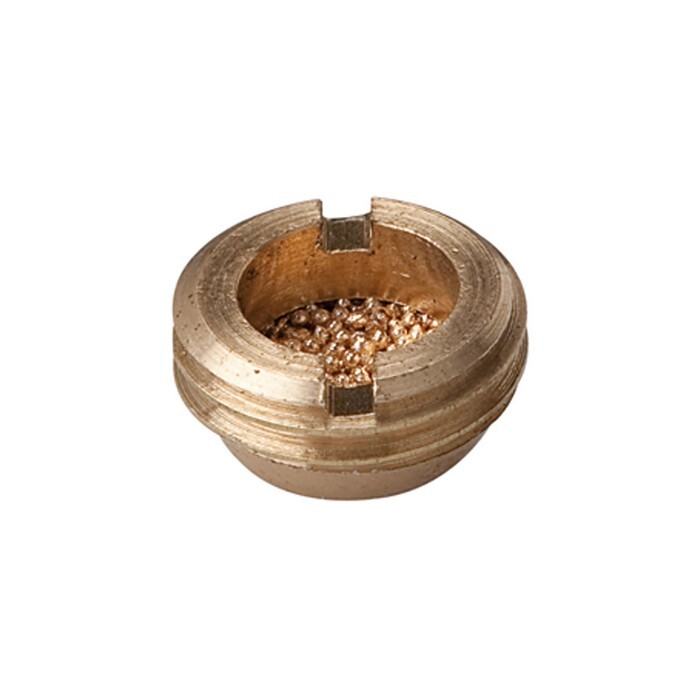

Silencer
AG 1/4", 0-10 bar, max 250°C Sintered bronze, flatItem-no.: 1116928Supplier number: 560-2EAN: 4047322100779
Quantity:
1 STKPackable
Item available in 6 variants:
Description
Sintered bronze silencer, flat, G 1/4 o., Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °CFor reducing the exhaust noise generated by pneumatic equipment.
Attributes
Max. operating pressure
10 bar
Operating temperature max.
250 °C
Operating temperature min.
-10 °C
Riegler article number
113365
Screw thread
G 1/4
Thread standard
G-thread according to DIN EN ISO 228-1
b
6 mm
c
8 mm
