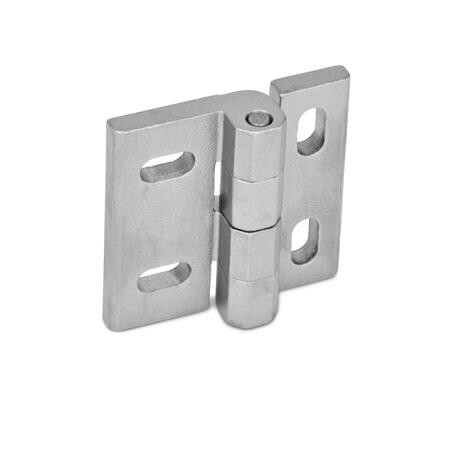

Hinge
GN 235-NI-55-55-HB-GS stainless steelNI - Stainless steel
Item-no.: 1344404Supplier number: 235-NI-55-55-HB-GSEAN: 4045525592377
Quantity:
1 STKPackable
Item available in 18 variants:
Description
Stainless steel hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head. Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision. The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.
Attributes
DB, HB, B
26
Form
HB - adjustable in height and width
Height l1 (Form DB. HB)
55
Material
NI - Stainless steel
RoHS
Ja
Surface
GS - matt blasted
Weight
0.160 kg
Width l2
55
b
6.5
d1
6.5
d2
6
h1
16.6
h2
6
h3
11.6
h4
23.2
m1
30
m2
30
