Disc handwheel for position indicator
GN 323.8-125-K12-R Bore with groove, handle rotatableAK - Aluminium gravity die casting
Item-no.: 1196639Supplier number: 323.8-125-K12-REAN: 4045525483811
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
How do you search for this item?
Description
Handwheels GN 323.8 have a recessed hub to accept position indicators GN 000.8 / GN 000.3. The hub dimensions (for fitting) correspond to those of disc handwheels GN 323 and/or handwheels to DIN 950.

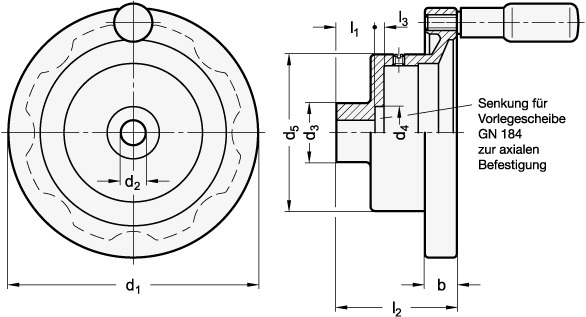

Attributes
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
12
Form
R - with swivelling handle
L1
18
Material
AK - Aluminium gravity die casting
Outer diameter d1
125
RoHS
Ja
Weight
0.460 kg
b
15
d3
31
d4
25.5
d5
76
l2 ≈
61
l3
4
