Bosch

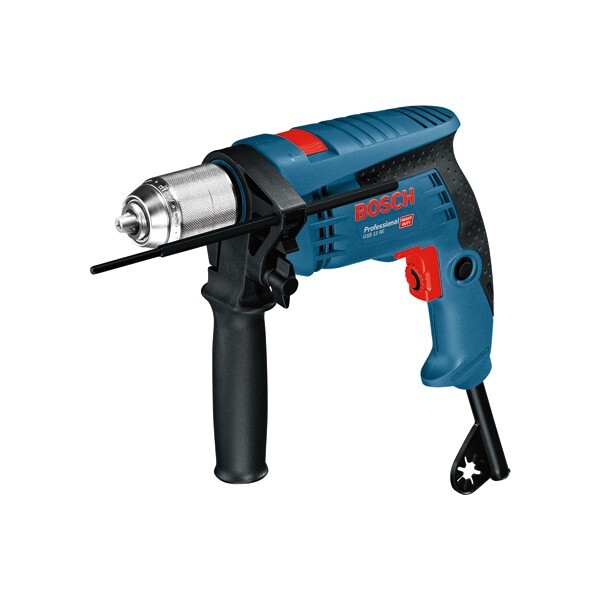

Impact drill GSB 13 RE

230 V, 600 W, 1.5-13 mm clamping range Bosch 0.601.217.100 in box
Item-no.: 1323541Supplier number: 0601217100EAN: 3165140371902

Quantity: ​​ 1 PiecePackable
Immediately Available

Description
Impact Drill GSB 13 RE, The GSB 13 RE Professional is a compact corded 1-geared entry-level impact drill. Its 1.8 kg lightweight design and small housing size provide convenience in handling and manoeuvrability. It is also particularly robust, including a durable metal keyless chuck. Additionally, this impact drill delivers professional results at an optimum price performance value. This tool is intended for drilling in masonry, stone, wood, and metal. The GSB 13 RE Professional also includes features such as speed selection and variable speed. Depth stop 210 mm (2 603 001 019), Keyless chuck 13 mm (2 608 572 149)
Attributes
Drill chuck clamping range, min./max.
1.5 - 13 mm
Drill chuck, design
Quick-action drill chuck
Drill spindle connnection thread
1/2"-20 UNF
Drill-Ø masonry
15 mm
Drill-Ø steel
10 mm
Drill-Ø wood
25 mm
Idle speed, 1st gear
0 - 2800 min-1
Idle speed, 1st gear, from
0 U/min
Idle speed, 1st gear, to
2800 U/min
Impact rate at idling speed
0 - 44800 bpm
Impact rate at idling speed, 1st gear, from
0 bpm
Impact rate at idling speed, 1st gear, to
44800 bpm
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (impact drilling in concrete)
3.0 m/s²
Measurement uncertainty k (screwing)
1.5 m/s²
Nominal input power
600 W
Nominal torque
1.8 Nm
Nominal torque, 1st gear
1.8 Nm
Output power
301 W
Spindle neck diameter
43.0 mm
Tool holder
1/2"-20 UNF
Vibration emission value ah [Drilling in metal]
3.0 m/s²
Vibration emission value ah [Screws]
2.5 m/s²
Vibration emission value ah [impact drilling in concrete]
26.0 m/s²
Voltage, electrical
230 V
Voltage, electrical, up to
230 V
Weight
1.8 kg
