Hazet

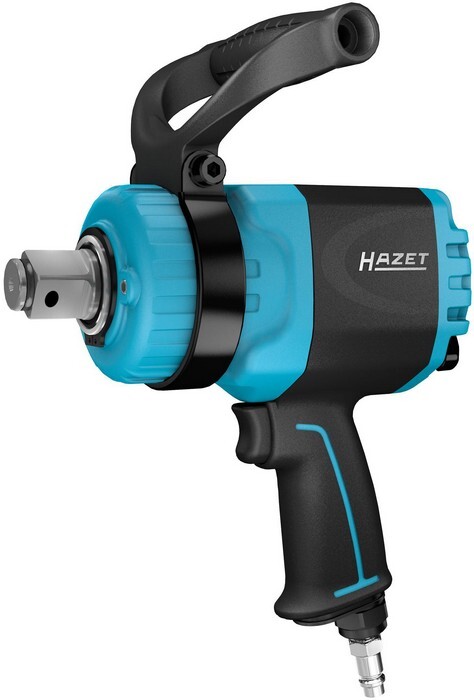

Impact wrench compressed air

1" 4100 Nm Hazet 9014TT
Item-no.: 1452439Supplier number: 9014TTEAN: 4000896234684

Quantity: ​​ 1 STKPackable
Promotional item
Short-term Sourcing

Description
Application: - Long service life and high efficiency in industrial and automotive applications · Loosening torque maximum [Nm]: 4100 Nm · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Short, compact design · One-hand operation for left and right handers · Removable handle, 360° adjustable · Connecting socket for low noise hose · HAZET Twin Turbo technology – high torques with compact design · 8-blade air motor with 25% higher impact performance ensures maximum torque · Powerful twin hammer mechanism · Air connection inlet: Inside thread 20.67 mm (1/2″) · Coupler plug: Nominal size 10 (included) · Recommended torque: 1898 Nm · Hose diameter (recommended): 19 mm · Working pressure (bar): 6.3 · Sound power level: 112.9 db(A) Lp W · Vibration acceleration: 19.11 m/s2 · Loosening torque (max) determined with screw size M: 32 · Forward and reverse: two-stage (forward), single-stage (reverse) · Cold insulated handle · Output: 1 inch (25 mm) square, solid · Net weight: 4.6 kg · For impact operation · Tightening torque max Nm: 2170 Nm · Loosening torque maximum [Nm]: 4100 Nm · Sound pressure level: 101.9 dB(A) Lp A · Revolutions per minute: 5200 · Air requirement: 235 l/min (3.9 l/sec).
Piktogramm
Piktogramm
Piktogramm
Attributes
Air connection inlet
Female thread 20.67 mm (1/2″)
Clockwise/anticlockwise rotation
two-stage (clockwise rotation), single-stage (anti-clockwise rotation)
Coupling plug
Nominal size 10 (included)
Hazardous substance labelling
false
Hose diameter (recommended)
19 mm
Impact mechanism (type)
High-performance double hammer impact mechanism
Maximum loosening moment
4100 Nm
Output
1 (25 mm) square solid "
Recommended torque
1898 Nm
Revolutions/minute (maximum)
5200 upm
Series
auya_9012TT-9014TT
Sound power level (at operating pressure)
112.9 db(A) Lp W
Sound pressure level (at operating pressure)
101.9 dB(A) Lp A
Vibration acceleration
19.11 m/s2
