Description

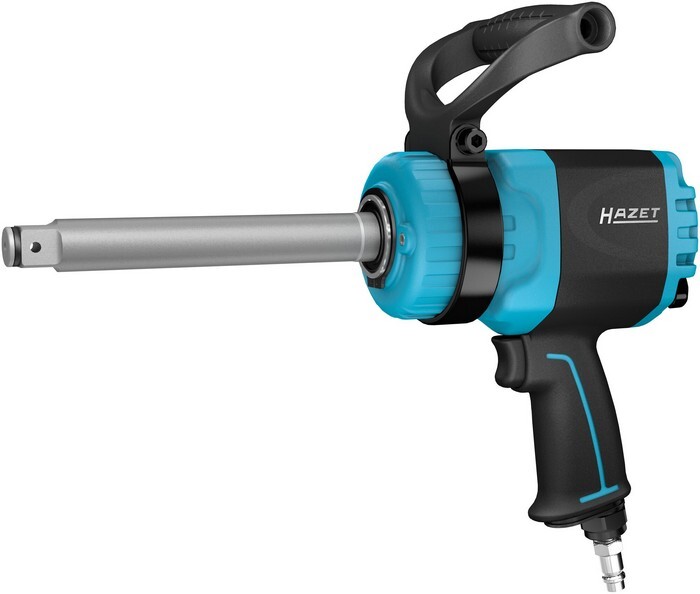

Application: - Long service life and high efficiency in industrial and automotive applications. - Compact design, optimised for work in confined spaces · Loosening torque maximum [Nm]: 3800 Nm · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Spindle length 186 mm – for reaching deeply located screw connections · Strongest HAZET impact wrench ever · Removable mounting bracket, 360° adjustable · HAZET Twin Turbo technology – high torques with compact design · 8-blade air motor with 25% higher impact performance ensures maximum torque · One-hand operation for right- and left-handed users · Powerful twin hammer mechanism · Air connection inlet: Inside thread 16.41 mm (3/8″) · Coupler plug: Nominal size 7.2 (included) · Recommended torque: 1758 Nm · Hose diameter (recommended): 13 mm · Working pressure (bar): 6.3 · Sound power level: 113.5 db(A) Lp W · Vibration acceleration: 9.02 m/s2 · Loosening torque (max) determined with screw size M: 32 · Forward and reverse: two-stage (forward), single-stage (reverse) · Cold insulated handle · Output: 3/4 inch (20 mm) square, solid · Net weight: 5.5 kg · For impact operation · Tightening torque max Nm: 2020 Nm · Loosening torque maximum [Nm]: 3800 Nm · Sound pressure level: 102.5 dB(A) Lp A · Revolutions per minute: 5200 · Air requirement: 243 l/min (4 l/sec).
Attributes
Air connection inlet
Internal thread 16.41 mm (3/8″)
Clockwise/anticlockwise rotation
two-stage (clockwise rotation), single-stage (anti-clockwise rotation)
Coupling plug
Nominal diameter 7.2 (included)
Hazardous substance labelling
false
Hose diameter (recommended)
13 mm
Impact mechanism (type)
High-performance double hammer impact mechanism
Maximum loosening moment
3800 Nm
Output
3/4 (20 mm) square solid "
Recommended torque
1758 Nm
Revolutions/minute (maximum)
5200 upm
Series
auya_9012TT-9014TT
Sound power level (at operating pressure)
113.5 db(A) Lp W
Sound pressure level (at operating pressure)
102.5 dB(A) Lp A
Vibration acceleration
9.02 m/s2
