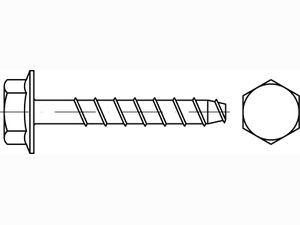

Schraubanker mit Sechskantkopf SW13
10,0x70 mm, verzinkt, Scheibe angepresst MULTI-MONTI MMSplus-SSCarbon steel
Item-no.: 1283907Supplier number: 48401EAN: 4019787484015
PU (Packaging): 25 STKQuantity:
1 STKPackable
Description
article 88902 steel hardened MMSplus-SS zinc plated MULTI-MONTI screw-in-anchors MMSplus-SS hexagon head with with pressed washer - dimension: 10 x 70 PU=S (25 pieces)
Attributes
Attachment thickness, tfix standard
5/20 mm
Borehole depth, h standard
75/60 mm
Diameter, d
10,0 mm
Drill diameter, d0
8,0 mm
Drive
Hexagon head
Drive size
SW-13
Head design
Hexagon head with pressed-on disc
Head diameter, dk
19,0 mm
Length, l
70 mm
Material
Carbon steel
Min. edge distance, c min
35 mm
Minimum component thickness, hmin
115 mm
Minimum component thickness, hmin2
100 mm
Recommended max. power output of the impact wrench, Tmax1
250 Nm
Screw-in depth, h nom standard
65/50 mm
Surface
galvanised blue, A2K
Thread length, lg
66 mm
Through hole in the attachment part, df
12,5 mm
