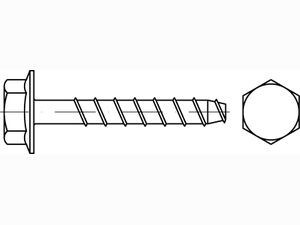

Screw anchor with hexagon head SW15
12.0x100 mm galvanised pressed-on disc MULTI-MONTI MMSplus-SSCarbon steel
Item-no.: 1283912Supplier number: 48411EAN: 4019787484114
PU (Packaging): 25 STKQuantity:
1 STKPackable
Description
article 88902 steel hardened MMSplus-SS zinc plated MULTI-MONTI screw-in-anchors MMSplus-SS hexagon head with with pressed washer - dimension: 12 x 100 PU=S (25 pieces)
Attributes
Attachment thickness, tfix standard
10/25 mm
Borehole depth, h standard
100/85 mm
Diameter, d
12,0 mm
Drill diameter, d0
10,0 mm
Drive
Hexagon head
Drive size
SW-15
Head design
Hexagon head with pressed-on disc
Head diameter, dk
22,0 mm
Length, l
100 mm
Material
Carbon steel
Min. edge distance, c min
40 mm
Minimum component thickness, hmin
150 mm
Minimum component thickness, hmin2
125 mm
Recommended max. power output of the impact wrench, Tmax1
250 Nm
Screw-in depth, h nom standard
90/75 mm
Surface
galvanised blue, A2K
Thread length, lg
95 mm
Through hole in the attachment part, df
14,5 mm
