Description

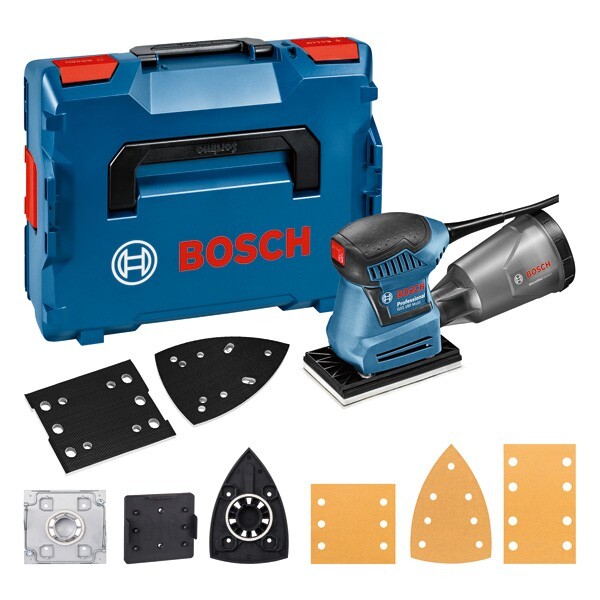

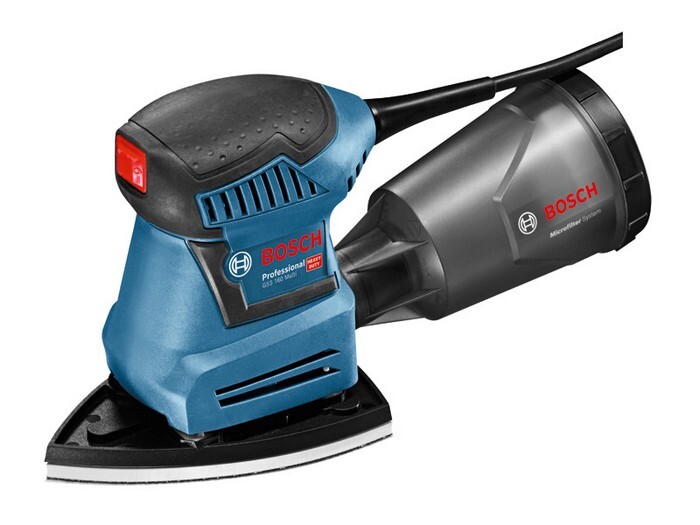

Orbital Sander GSS 160 Multi, The GSS 160 Professional Multi is Bosch's compact and ergonomic corded orbital sander capable of tackling multiple applications including corners. An ergonomic palm rest and a compact design ensure easy, comfortable handling. Included are three interchangeable pads that enable work on edges and corners as well as on small flat surfaces. Its dust box is fitted with a built-in Bosch Micro Filter System, providing an efficient dust-extraction system for practically dust-free work This orbital sander is intended for in-between sanding, surface finishing, and for sanding corners and small flat surfaces. It is applicable on wood, veneer, lacquer, filler, as well as mineral and acrylic surfaces. It is compatible with the Bosch Click & Clean System. The GSS 160 Professional Multi also includes a clamping system, a hook-and-loop system for fastening sanding paper, and is designed to enable one-handed use. L-BOXX 136 (1 600 A01 2G0), L-BOXX inlay, Hole punch (2 608 190 059), Screwdriver, Dust box (2 605 411 240) incl. Microfilter (2 605 411 241), 1 x sanding sheet C470, Best for Wood + Paint, 120 (available separately as set of 10: 2 608 607 232), 1 x sanding sheet C470, Best for Wood + Paint, 120 (available separately as set of 10: 2 608 607 458), 1 x sanding sheet C470, Best for Wood + Paint, 120 (available separately as set of 10: 2 608 608 Z96), Delta base plate, 100 x 150 mm (2 608 601 448) with sanding plate (2 608 601 445), Base plate, 113 x 101 mm (2 608 601 446) with sanding plate (2 608 601 443), Base plate, 80 x 130 mm (2 608 601 447) with sanding plate (2 608 601 444)
Attributes
Delta sanding plate with hook and loop fastener, length
150 mm
Delta sanding sheet with hook and loop fastener, width
100 mm
Idle speed
12000 min-1
Leerlaufdrehzahl, von
12000 min-1
Measurement uncertainty k (sheet material)
1.5 m/s²
Nominal input power
180 W
Sanding plate with Velcro fastener and clamp, length
113 mm
Sanding plate with Velcro fastener and clamp, width
101 mm
Sanding plate with Velcro fastener, length
130 mm
Sanding plate with Velcro fastener, width
80 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 440 x 155 mm
Vibration circle diameter
1.6 mm
Vibration emission value ah [panel material grinding]
5.0 m/s²
Vibration level at idle
24000 min-1
Vibration rate at idle, from
24000 min-1
Voltage, electrical
230 V
Weight
1.2 kg
Werkzeugabmessungen (Länge)
296 mm
