Riegler

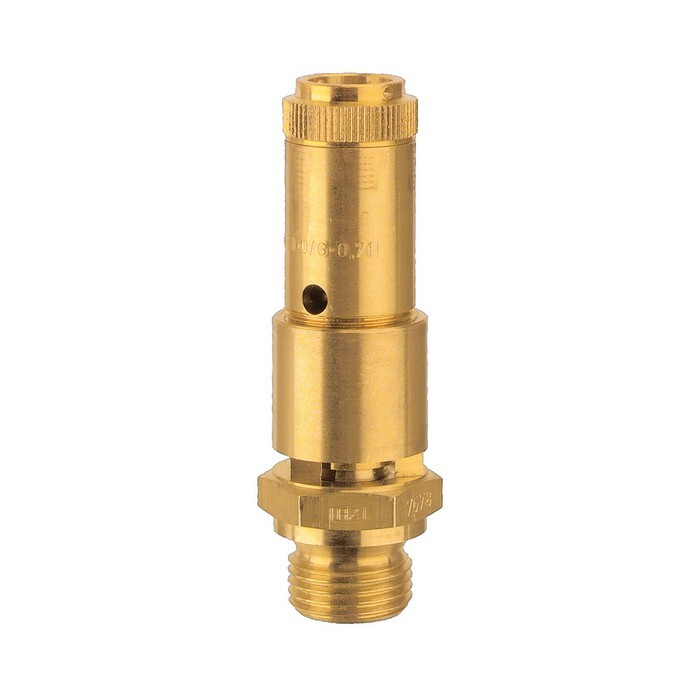

Safety valve full stroke DN10

AG 1/2", response pressure 16 bar max 180°C, brass
Item-no.: 1244375Supplier number: 227.55-16,0EAN: 4047322048415

Quantity: ​​ 1 STKPackable
Item available in 160 variants:
Immediately Available

Description
Full stroke safety valve DN 10, Brass, Operating temp. -25 °C to 180 °C, G 1/2, AF 27, Trigger pressure 16 bar, Type testedFor compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam. These valves are TÜV approved and have a TÜV type test number.
Attributes
A
26 mm
Compression spring
Stainless steel
Housing
brass
Max. operating pressure
50 bar
Minimum activation pressure
16 bar
Operating pressure min.
0,2 bar
Operating temperature max.
180 °C
Operating temperature min.
-25 °C
Riegler article number
104612
SW
27 mm
Screw thread
G 1/2
Sealing material
FKM
c
95 mm
d
14 mm
