Item available in 33 variants:
Diameter (D): 10.00 mm Total length mm: 133 mm
xDiameter (D): 2.00 mm
Total length mm: 60 mm
Total length mm: 60 mm
Diameter (D): 2.50 mm
Total length mm: 69 mm
Diameter (D): 3.00 mm
Total length mm: 72 mm
Total length mm: 72 mm
Diameter (D): 3.30 mm
Total length mm: 75 mm
Diameter (D): 3.20 mm
Total length mm: 75 mm
Diameter (D): 3.50 mm
Total length mm: 79 mm
Total length mm: 79 mm
Diameter (D): 4.00 mm
Total length mm: 83 mm
Diameter (D): 4.20 mm
Total length mm: 83 mm
Diameter (D): 4.00 mm
Total length mm: 83 mm
Diameter (D): 4.20 mm
Total length mm: 83 mm
Diameter (D): 4.50 mm
Total length mm: 87 mm
Diameter (D): 5.00 mm
Total length mm: 91 mm
Total length mm: 91 mm
Diameter (D): 5.50 mm
Total length mm: 98 mm
Diameter (D): 6.00 mm
Total length mm: 98 mm
Total length mm: 98 mm
Diameter (D): 6.50 mm
Total length mm: 107 mm
Diameter (D): 7.00 mm
Total length mm: 109 mm
Diameter (D): 6.80 mm
Total length mm: 109 mm
Diameter (D): 7.50 mm
Total length mm: 109 mm
Diameter (D): 8.50 mm
Total length mm: 117 mm
Diameter (D): 8.00 mm
Total length mm: 117 mm
Total length mm: 117 mm
Diameter (D): 9.50 mm
Total length mm: 125 mm
Diameter (D): 9.00 mm
Total length mm: 125 mm
Diameter (D): 10.00 mm
Total length mm: 133 mm
Total length mm: 133 mm
Diameter (D): 11.00 mm
Total length mm: 142 mm
Diameter (D): 12.00 mm
Total length mm: 151 mm
Total length mm: 151 mm
Description

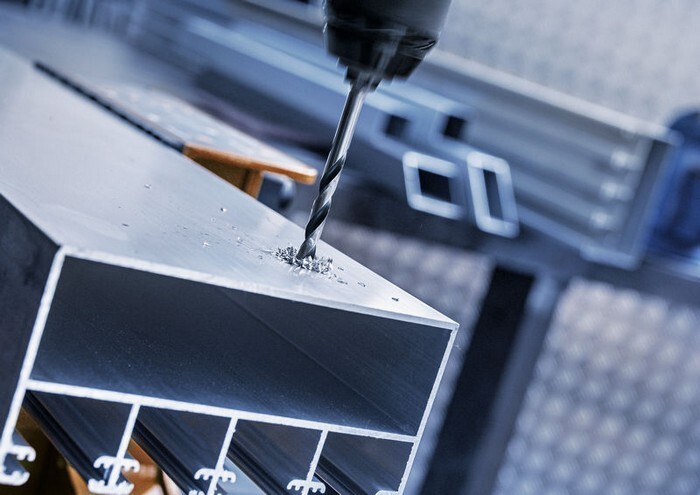

The HSS Twist Drill Bit PointTeQ with hex shank delivers fast results when drilling in metal. Designed for high-speed drilling, it generates minimal heat and bit wear, and features a PointTeQ tip design that ensures continual sharpness and high durability. Its self-centring tip prevents wandering and enables quick and easy drilling starts, while its black-oxide-coated flute provides fast chip removal. For even higher reliability, the bit´s hex shank offers stability and a firm lock between the bit and chuck, strengthening the bit´s body and reducing the risk of breakage for drill bits below 6 mm in diameter. The HSS Twist Drill Bit PointTeQ's split-point tip allows for active cutting and perfect centring. Drill bit Type N (flute angle) with 135° tip, manufactured to DIN 338.
Attributes
Arbeitslänge
87 mm
Diameter (D)
10.00 mm
Overall length (L2)
133 mm
Total length mm
133 mm
Working length (L1)
87 mm
