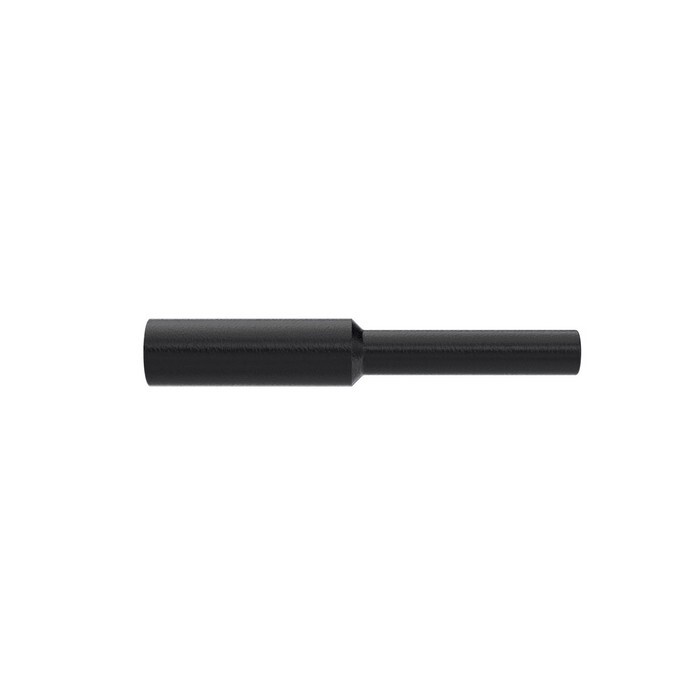

Reducing plug nipple
for SD12 to 10 mm, max 10 bar Plastic, blue seriesItem-no.: 1247081Supplier number: 179.1210EAN: 4047322388108
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Plug nipple »Blue Series«, reducing, plug nipple 12/10 mm, pmax short term 15 bar, Plastic. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic. Only recommended for use in combination with quick connectors of the �Blue Series�. Suitability testing for use with other series is the responsibility of the user.
Attributes
Application range
Air, vacuum
L1
51 mm
Material
Plastic
Medium
Compressed air, neutral and non-hazardous gases and liquids
Plug nipple
12/10 mm
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109925
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
