Ganter

Levelling foot with mounting bracket

GN 33-80-M16-75-B1-UK stainless steel
NI - Stainless steel
Item-no.: 1347560Supplier number: 33-80-M16-75-B1-UKEAN: 4045525991972

Quantity: ​​ 1 PiecePackable
Item available in 368 variants:
Short-term Sourcing

Description
Leveling feet GN 33 will be delivered mounted and are not removable.
Attributes
Foot diameter d1
80
Form (foot plate)
B1 - matt blasted, rubber inlay, black
Length l1 (U/UK/T/TK)
75
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 16
Spindle variant
UK - with nut, hexagon socket at the top and spanner flat at the bottom
Weight
0.400 kg

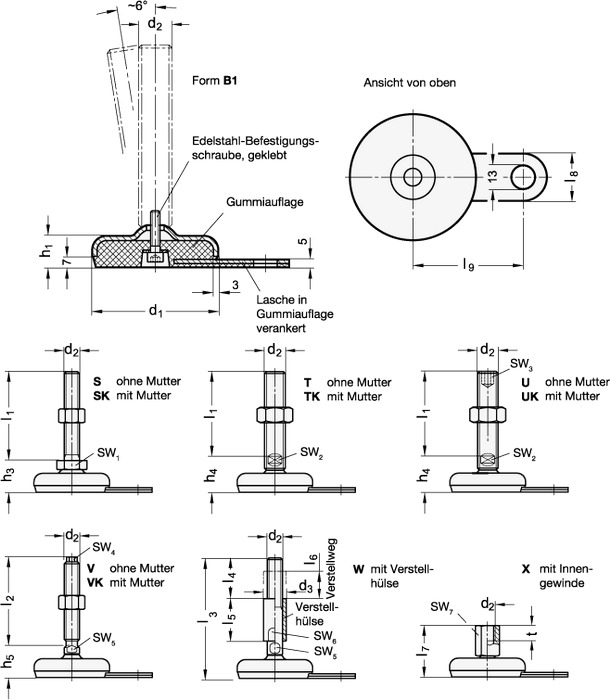

d1
80
d2
M 16
h1
20
h4
34
l8
30
l9
70
sw2
12
sw3
8
